At a glance
Two ESD-protected, level-shifted data outputs plus a 5V relay trigger (shared with Q1)
1 × 10A SMD 2410 fuse and reverse polarity protection
ws2811, ws2812b, sk6812, APA102, ws2815 and more
MQTT, Home Assistant native API, or E1.31 with xLights/Vixen
Control instantly from the WLED Android/iOS app, or reflash with ESPHome/custom code
Screw-terminal connectors; WiFi + BT with an Ethernet option
NEWLatest V4 revision: the newest and best QuinLED Dig-Uno yet
V4 is a completely reworked board with a new DC-DC converter that fixes the 24V issue found on earlier revisions. Here's what's new compared to V3:
- Completely reworked board — V4 revision 1, pre-assembled release 2026-10-31
- New DC-DC converter design — Fixes the 24V issue; the board remains 5V-24V
- New relay port and circuit — Uses a load-switch (still 5V trigger out, shared with Q1), smaller port with included pigtail cable
- Improved level-shifter circuit — Extra hardware ESD protection, shared resistor-switcher switches
- New I2C port — Stemma QT / JST SH 1.0mm
- Single-board Ethernet — Ethernet board lip points up, no longer a stacked board
- Onboard digital PDM microphone — Included on the ESP32, so every Dig-Uno V4 has a built-in mic
- New GPIO layout — New ESP32 module uses different GPIO pins, see the pinout guide
Technical details

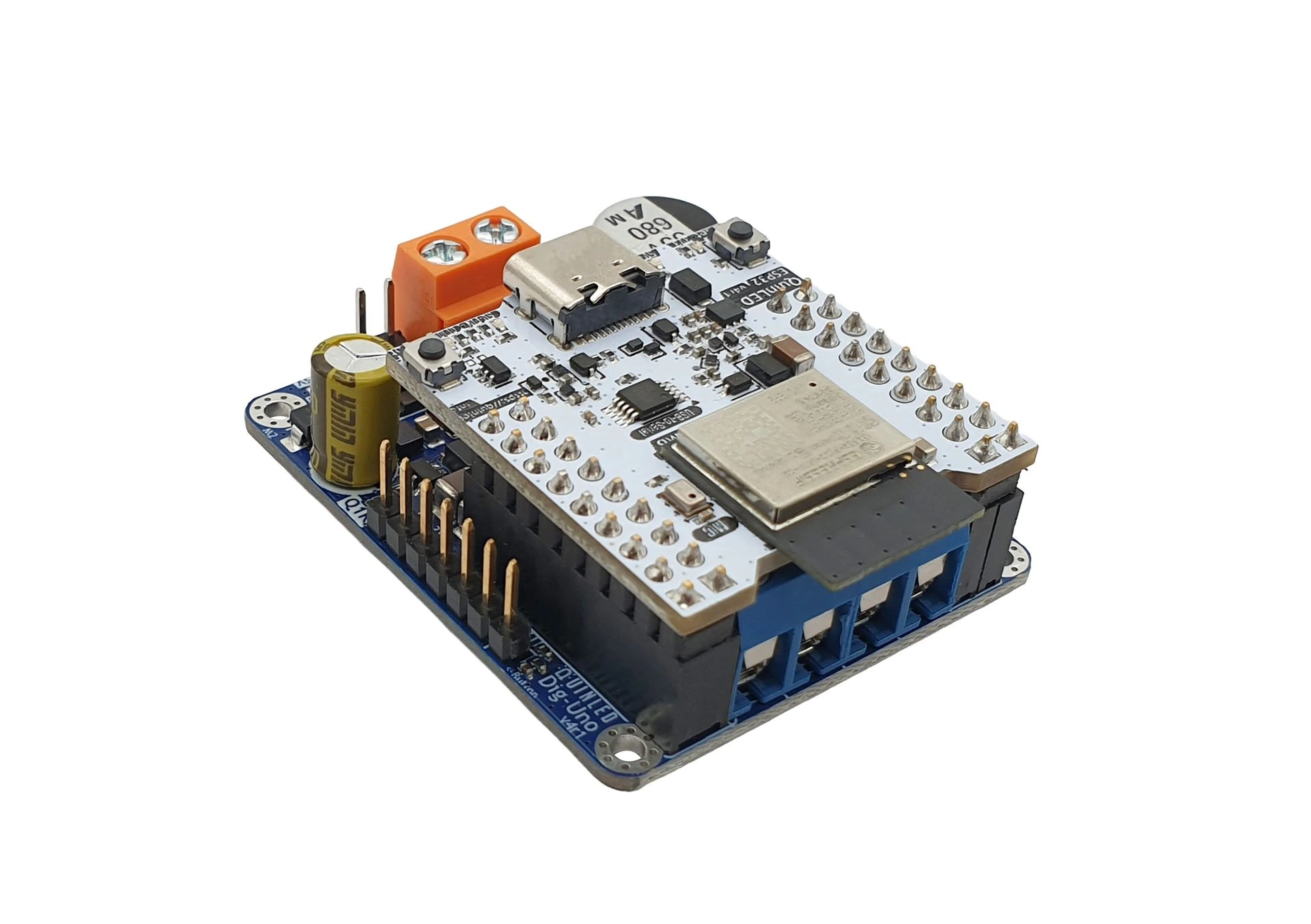

- QuinLED ESP32 based programmable LED controller, pre-flashed with WLED firmware
- Home Assistant integration with WLED or ESPHome

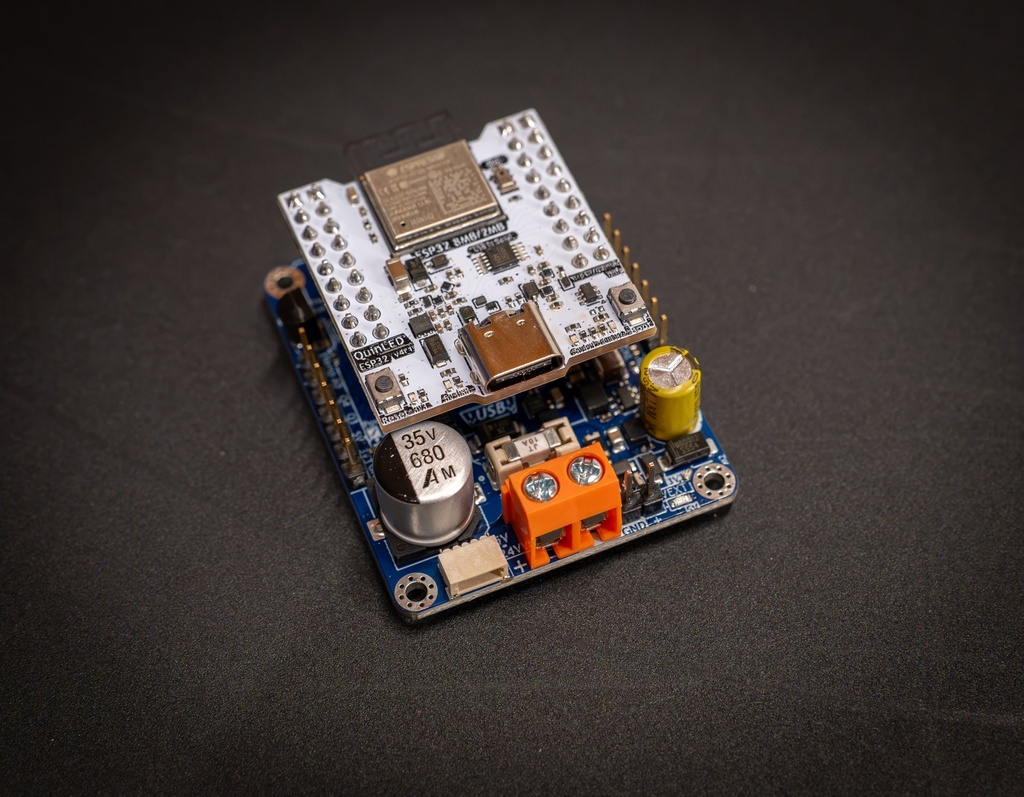

- Bundled QuinLED ESP32 v4 (8MB flash, 2MB PSRAM, WiFi + BT); choose your ESP32 variant, including Ethernet, when ordering
- Dual channel controller: 2 × ESD-protected, level-shifted data outputs
- Compatible to open firmware e.g. ESPHome, ESPpixelstick or custom Arduino code
- Integrates with MQTT or Home Assistant native API (use WLED FW)
- Remote control available via Android or iOS app (WLED FW)
- Can be used for E1.31 with xLights/Vixen software (use WLED or ESPpixelstick FW)
- Screw-terminal connectors, 5V-24V input
- Max current: up to 10A
- 1 × 10A SMD 2410 fuse and reverse polarity protection
- Stemma QT / JST SH I2C port, load-switch relay port (5V trigger, shared with Q1) with pigtail cable, and onboard digital PDM microphone (new GPIO layout, see pinout guide)
What's in the box

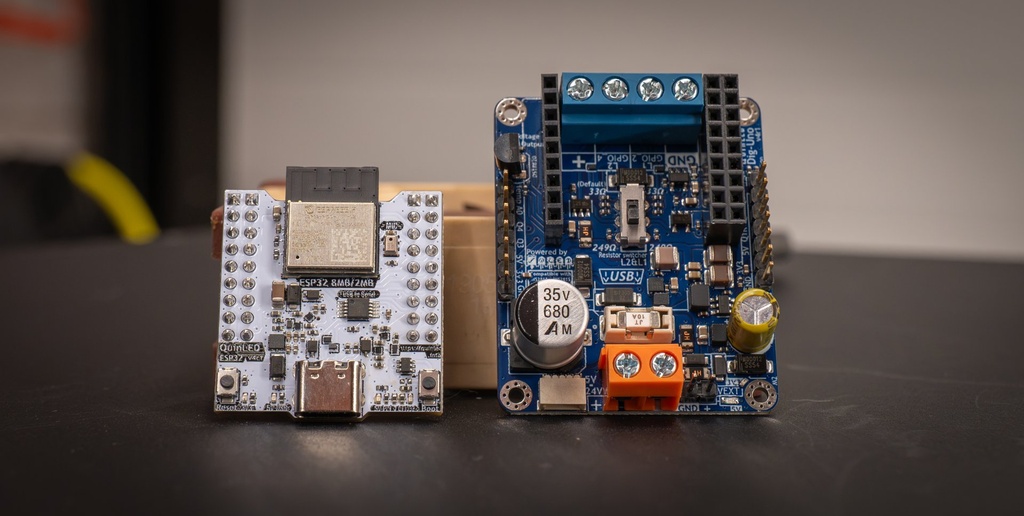

- QuinLED Dig Uno V4 LED controller

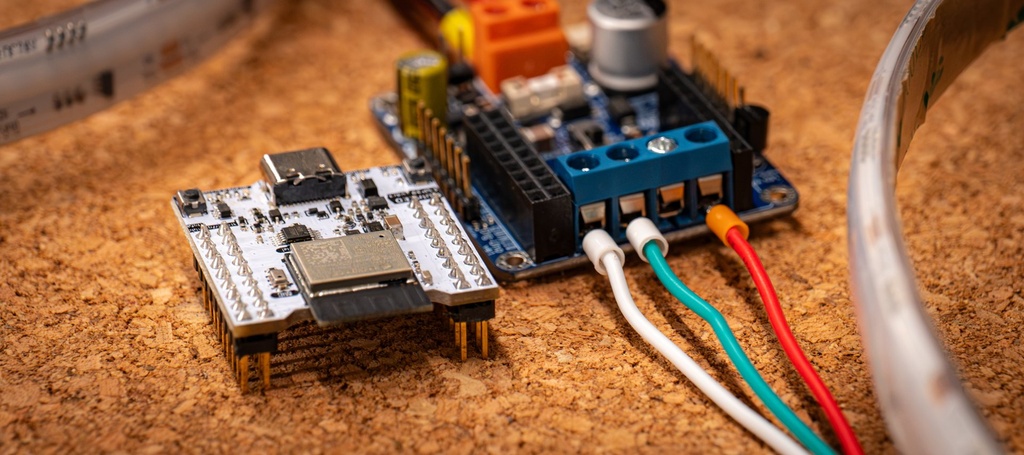

- QuinLED-ESP32 WIFI module with USB-C interface
- Pre-flashed WLED firmware for instant use
- Please check the different product variants available

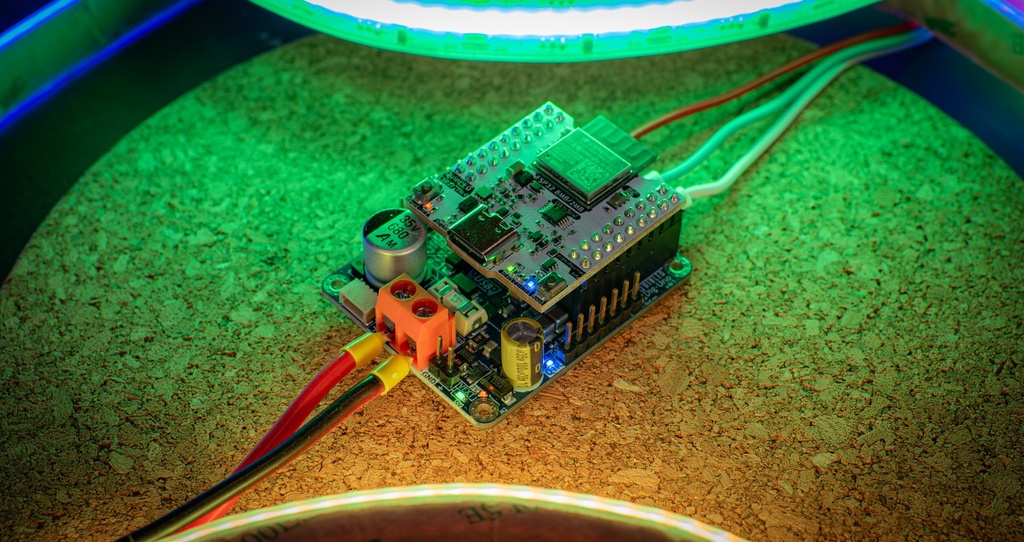

Compatible LED strips
| 5V | ws2811, ws2812b, sk6812, APA102 |
| 12V | ws2811, ws2815 |
| 24V | Supported — check your specific strip's datasheet |
