At a glance
Re-broadcasts the signal
Onboard level-shifter cleans up and re-sends your LED data signal
Fixes long-run flicker
Stops flickering/erratic behavior on data runs past ~3m/10ft
Switch-selectable resistor
33Ω or 249Ω output to match your wiring setup
5V-48V power injection
High current-carrying board design supports power pass-through
No soldering required
M3 bolt terminals for power injection, or solder direct to the pad
Clearly labeled
Quick, mistake-free connections every time
How it works
- Onboard level-shifter takes in the LED data signal, boosts it, and re-broadcasts it down the line
- "Cleans up" degraded data signals to allow much longer distances between LED strips/pucks

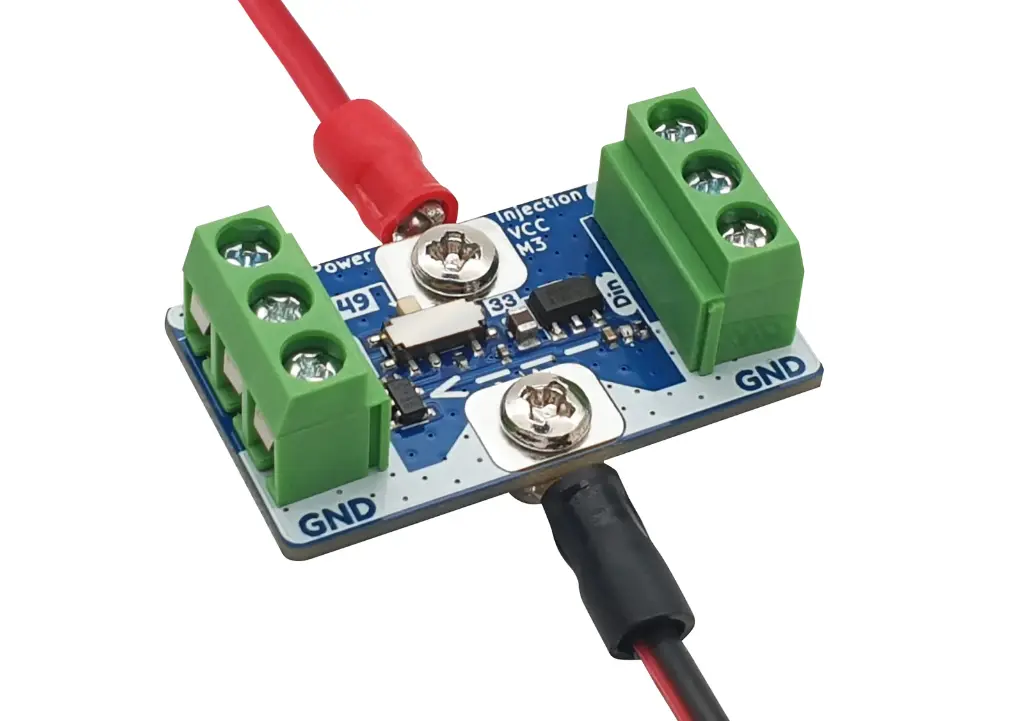

- Switch-selectable 33Ω or 249Ω data line resistor — match a single data wire or a 3-wire (data + ground) run
- Supports 5V-48V power in/out alongside the data signal
- High current-carrying board design for reliable power injection

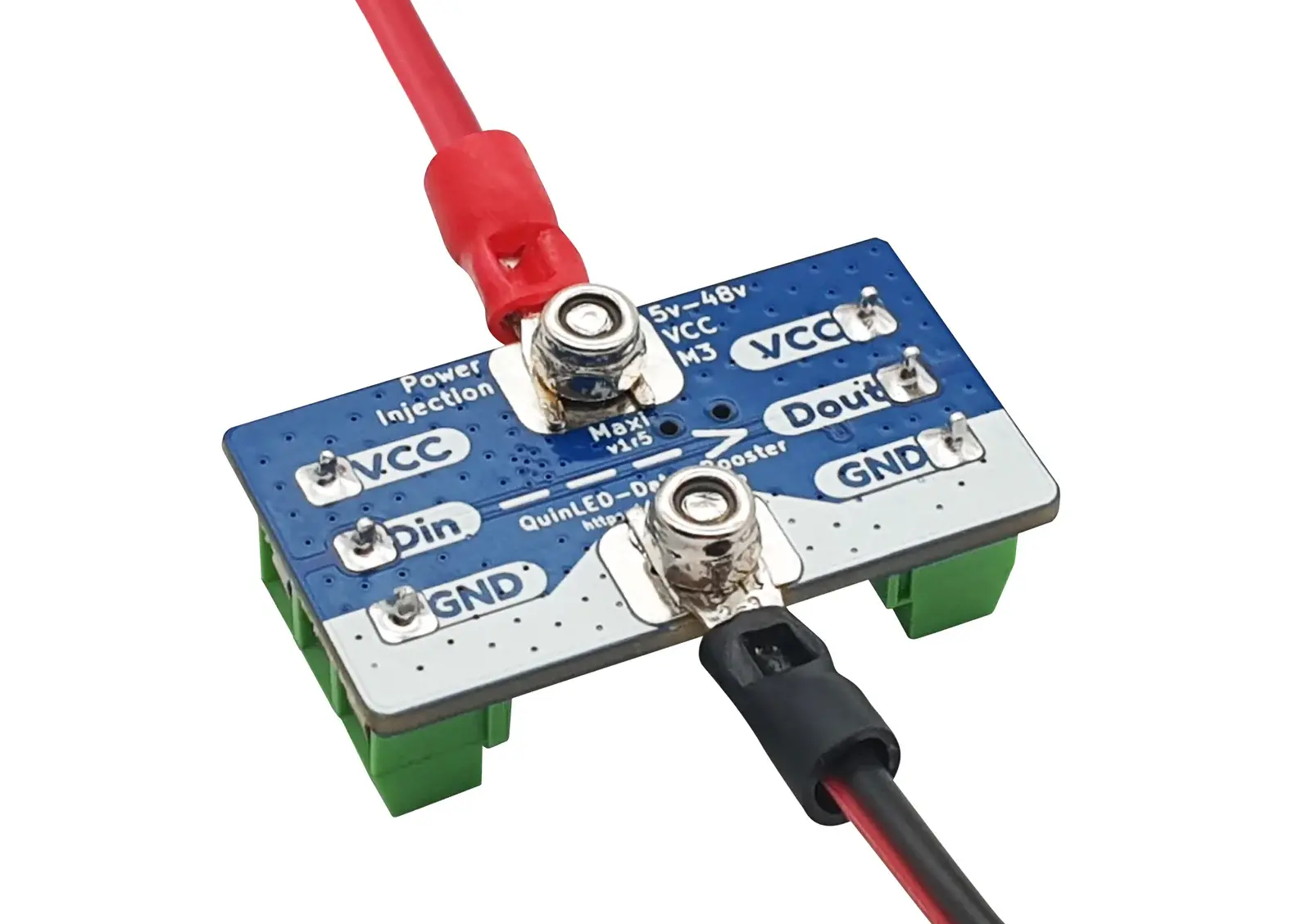

Power injection & contents
- Add power injection mid-run without any soldering — M3 bolt terminals
- Accepts crimped fork or ring connectors with M3 screw/nut, or solder directly to the pad/hole
- Clean, clear labelling for quick and easy connections without mistakes
- Includes: QuinLED Data Booster board, crimp fork connectors, screws
