At a glance
Run separate zones or effects from a single board
2oz copper traces, on-board 5x 5A fuses and reverse polarity protection
ws2811, ws2812b, sk6812, APA102, ws2815, tm1814 and more
MQTT, Home Assistant native API, or E1.31 with xLights/Vixen
Control instantly from the WLED Android/iOS app, or reflash with ESPHome/custom code
On-board DS18B20 temp sensor plus 6 spare GPIO pins
Known issue: IC failures at 24V (current revision)
On the current board revision, a specific IC can fail when powered at 24V. Not all boards are affected and the failure rate is low. For this specific failure only, warranty coverage is extended to 1.5 years — standard warranty terms still apply to everything else.
- If your board has died from this issue: fill in this form and we'll ship a replacement once available.
- Not sure? Join the Discord and we'll help diagnose it.
- Board working fine? No action needed — the replacement form is for failed boards only. If you'd like to be proactive, this mitigations & fixes guide covers mitigations you can apply to a running board to reduce the chance of failure.
- Planning to run at 24V? We recommend waiting for the new revision before buying.
Technical details

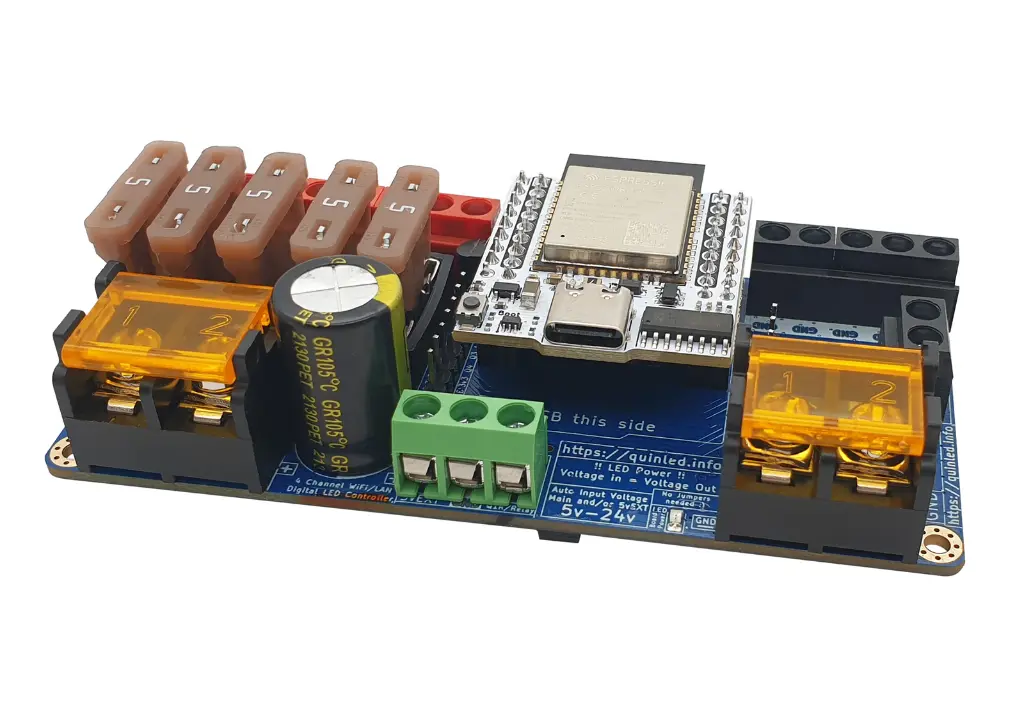

- QuinLED ESP32 based programmable LED controller with 4 independent output channels
- Compatible to open firmware e.g. ESPhome, ESPpixelstick or custom Arduino code
- Integrates with MQTT or Home Assistant native API (use WLED FW)
- Remote control available via Android or iOS app (WLED FW)
- Can be used for E1.31 with Xlights/Vixen software (use WLED or ESPpixelstick FW)
- Uses 2 OZ copper allowing high current handling (up to 30A Continuous)
- On-board 5x 5A fuse and reverse polarity protection
- On-board DS18B20 temperature sensor
- 6 GPIO pins (e.g. Audio, PS Relay, IR control or I2C display)
What's in the box
- QuinLED Dig Quad LED controller board
- QuinLED ESP32 WIFI module with USB-C interface *depends on variant
- 5x 5A ATO fuses
- NEW - bigger screw terminals for easier cable management
- Pre-flashed WLED firmware for instant use
Compatible LED strips
| 5V | ws2811, ws2812b, sk6812, APA102 |
| 12V | ws2811, ws2815 |
| 24V | ws2811, sk6812, tm1814 |
Videos
Some links are affiliate links and we may earn a small commission when you purchase through the link — your price does not change and it doesn't affect any deals or coupons either.
Power supply
We always suggest Meanwell power supplies — very reliable, and they actually give you the power they state.

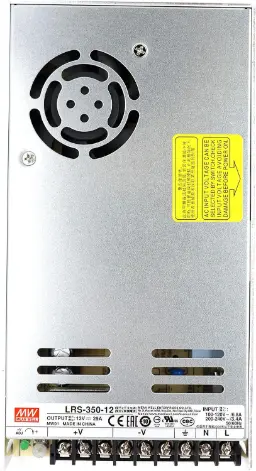

Mean Well LRS Series 350W — 12V & 24V
Skip Amazon and the border altogether — we stock both the 12V (LRS-350-12) and 24V (LRS-350-24) versions and ship them fast, right from here in Canada. Same genuine Meanwell quality, no import hassle. Choose your voltage on the product page.
🛒 Buy Direct — $54.99 CADNeed a different wattage? Other Meanwell LRS models, available on Amazon:

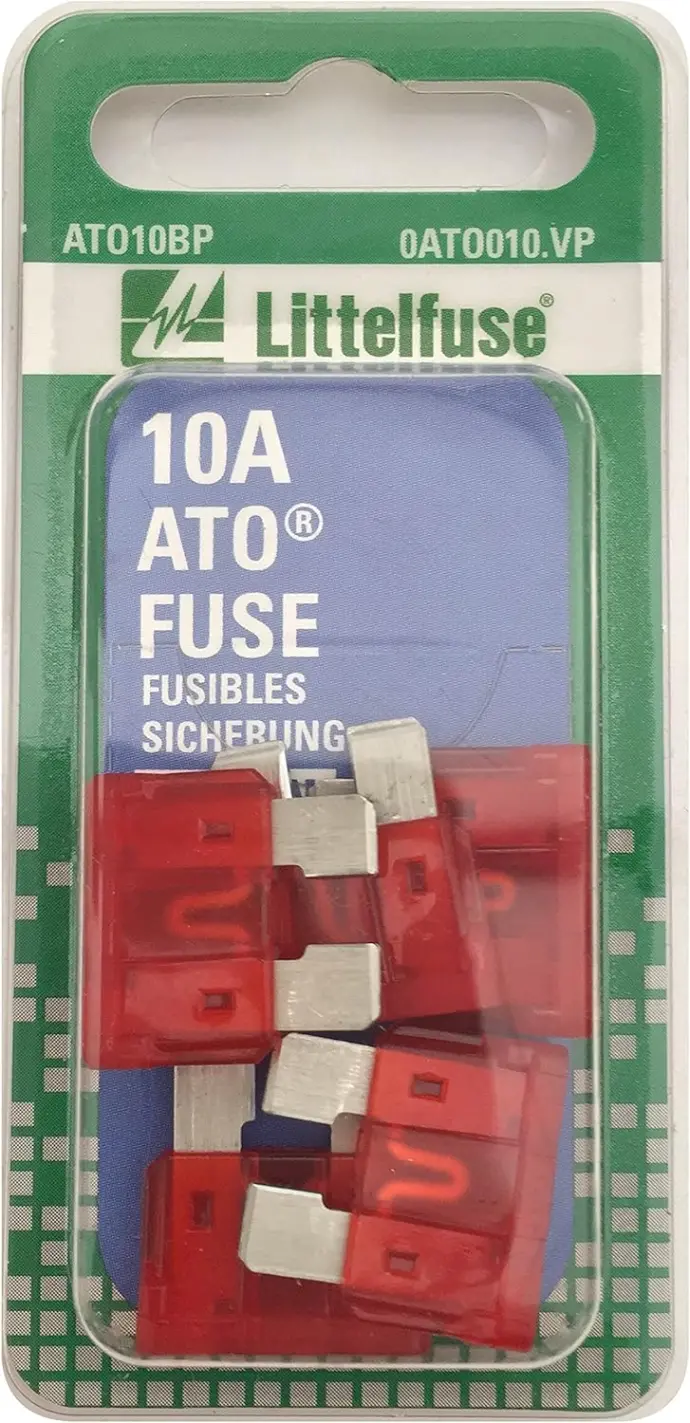

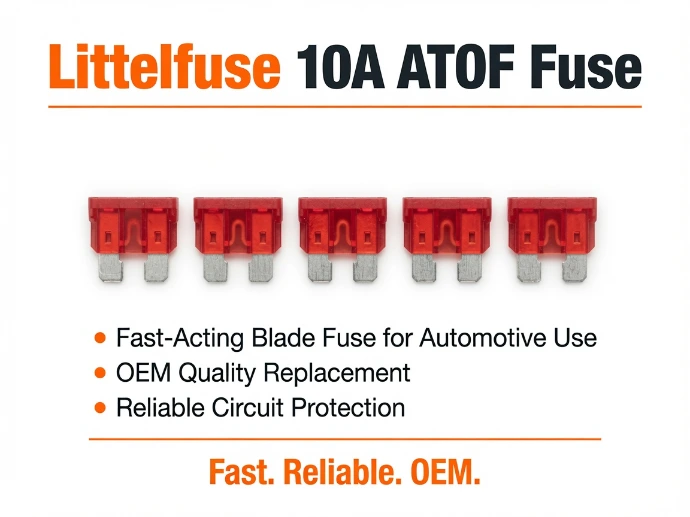

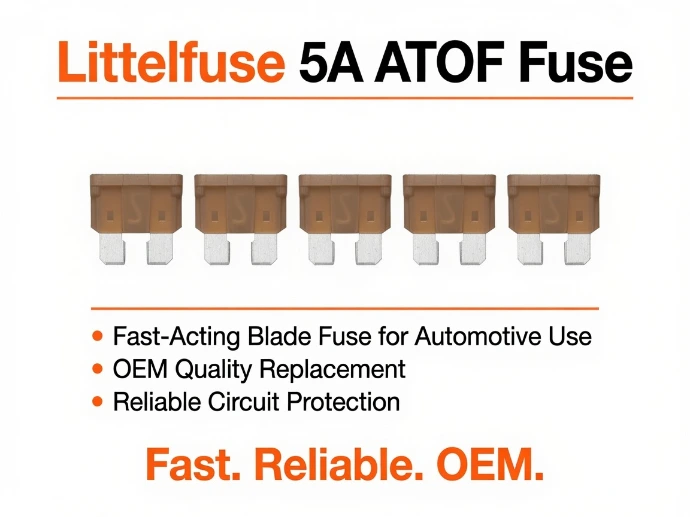

Fuses
You'll want ATO spares in case you miss-wire or blow the included fuse. We sell official spares directly.
Misc. accessories
We sell a variety of accessories to help with your install and make water-tight connections.
Split Braided Loom
Self-closing braided loom for tidy, protected cable runs. Available in multiple sizes.
Shop Split Loom
Adhesive Lined Heat Shrink
Dual-wall, adhesive-lined heat shrink for water-tight connections. Available in multiple sizes.
Shop Heat Shrink
