At a glance

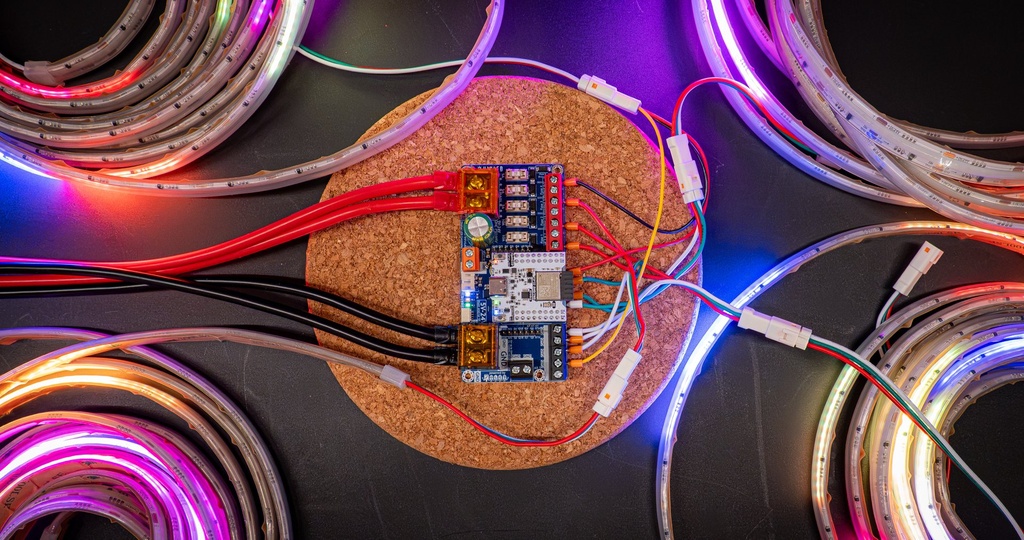

Run separate zones or effects from a single board, plus a 5V relay trigger output (shared with Q1)
5 × onboard SMD 2410 fuses (2 × 10A + 3 × 5A) and reverse polarity protection
ws2811, ws2812b, sk6812, APA102, ws2815, tm1814 and more
MQTT, Home Assistant native API, or E1.31 with xLights/Vixen
Control instantly from the WLED Android/iOS app, or reflash with ESPHome/custom code
Stemma QT I2C port and onboard digital microphone
NEWLatest V4 revision: the newest and best QuinLED Dig-Quad yet

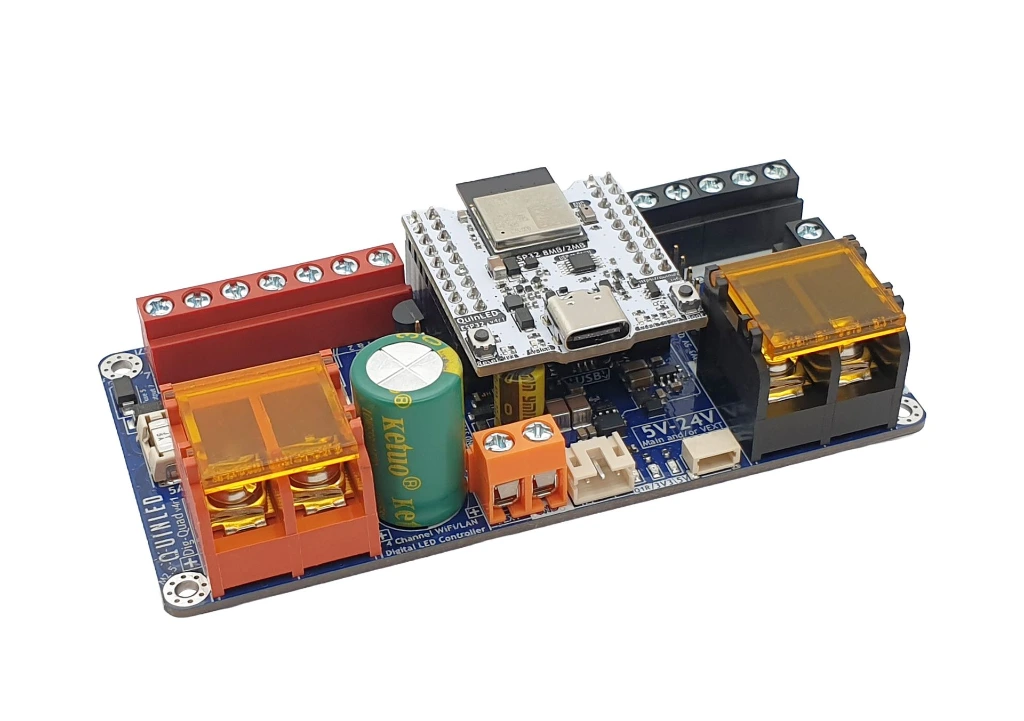

V4 is a completely reworked board with a new DC-DC converter that fixes the 24V issue found on earlier revisions. Here's what's new compared to V3:
- Completely reworked board — V4 revision 1, pre-assembled release 2026-10-31
- New DC-DC converter design — Fixes the 24V issue; the board remains 5V-24V

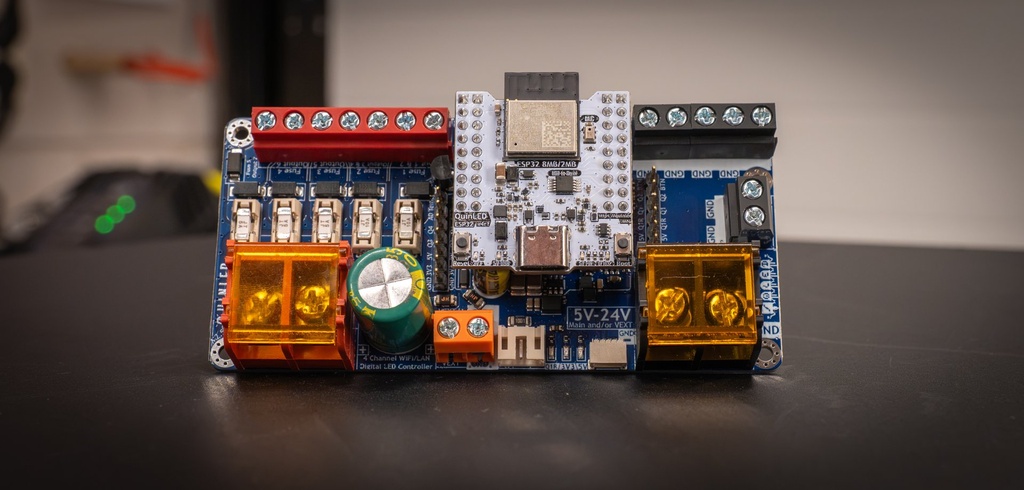

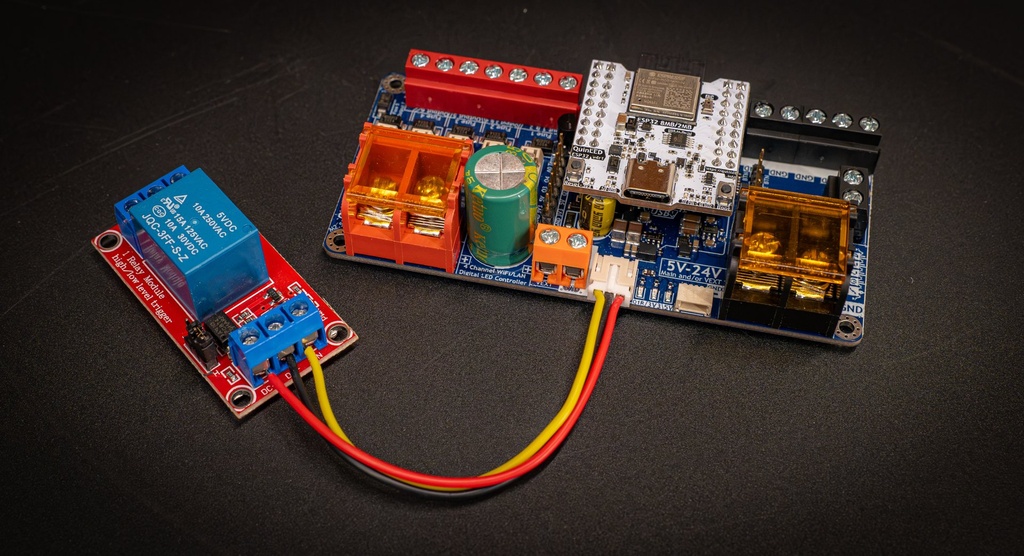

- New relay port and circuit — vEXT terminal goes from 3-pin to 2-pin (still 5V-24V), replaces the V3's 5th output with a relay channel: load-switch with 5V trigger out (shared with Q1), smaller port with included pigtail cable

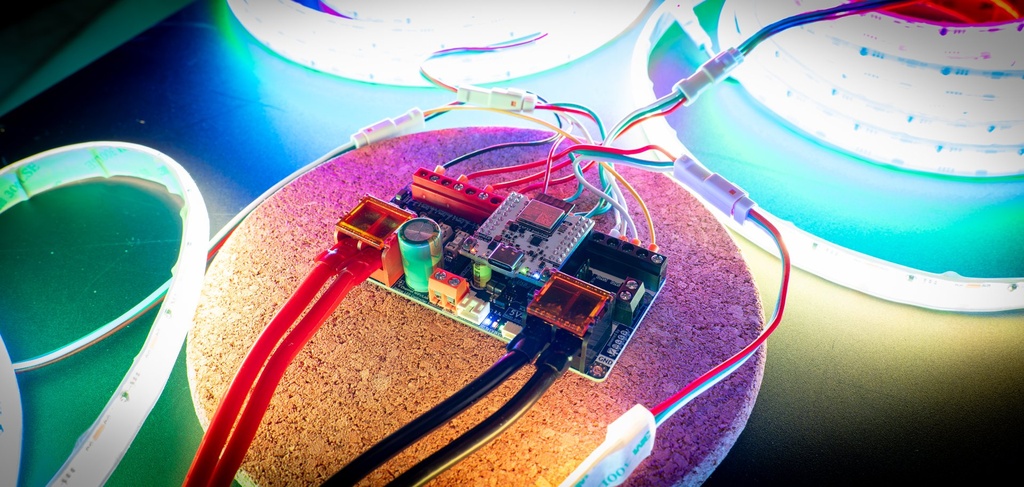

- Upgraded main input terminals — Slightly higher rated and colour coded: red = positive, black = negative/GND
- Improved level-shifter circuit — Extra hardware ESD protection, shared resistor-switcher switches
- New I2C port — Stemma QT / JST SH 1.0mm
- Single-board Ethernet — Ethernet board lip points up, no longer a stacked board
- Onboard digital PDM microphone — Included on the ESP32, so every Dig-Quad V4 has a built-in mic
- New GPIO layout — New ESP32 module uses different GPIO pins, see the pinout guide
Technical details

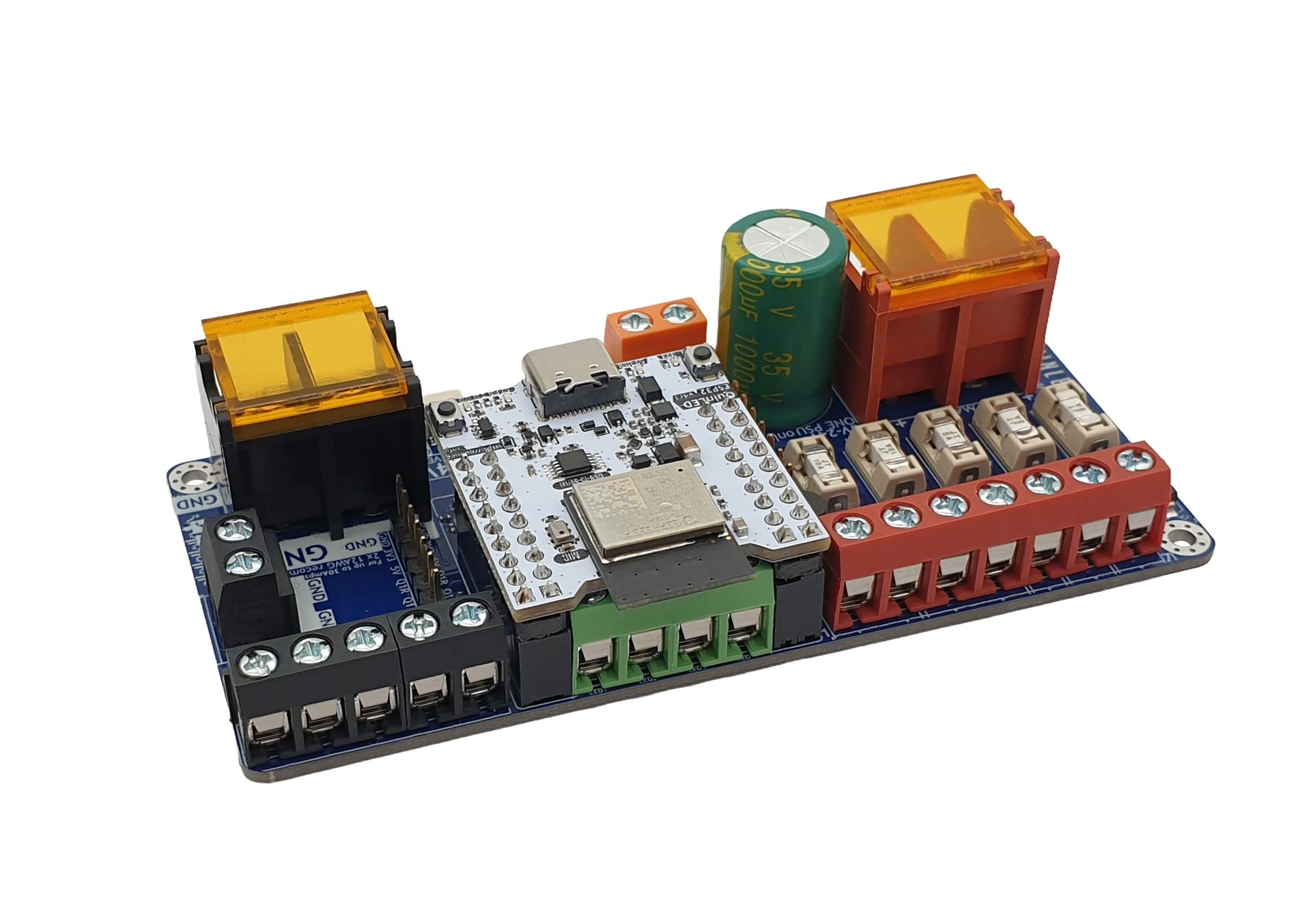

- QuinLED ESP32 based programmable LED controller with 4 × data output channels
- QuinLED-ESP32 · 8MB flash / 2MB PSRAM · WiFi + BT, Ethernet option
- Relay: 5V trigger (load switch), shared with Q1; replaces the V3's 5th output
- Compatible to open firmware e.g. ESPhome, ESPpixelstick or custom Arduino code
- Integrates with MQTT or Home Assistant native API (use WLED FW)
- Remote control available via Android or iOS app (WLED FW)
- Can be used for E1.31 with Xlights/Vixen software (use WLED or ESPpixelstick FW)
- 30A continuous (50A peak)
- 5 × onboard SMD 2410 fuses (2 × 10A + 3 × 5A) and reverse polarity protection
- Stemma QT / JST SH I2C port, onboard digital PDM microphone, load-switch relay port with pigtail cable (new GPIO layout, see pinout guide)
What's in the box
- QuinLED Dig Quad LED controller board
- QuinLED ESP32 WIFI module with USB-C interface *depends on variant
- 5 × onboard SMD 2410 fuses (2 × 10A + 3 × 5A)
- NEW - upgraded, colour-coded main input terminals (red +, black GND)
- Pre-flashed WLED firmware for instant use
Compatible LED strips
| 5V | ws2811, ws2812b, sk6812, APA102 |
| 12V | ws2811, ws2815 |
| 24V | ws2811, sk6812, tm1814 |
Videos
