QuinLED Dig Quad v3 DIGITAL LED controller

QuinLED Dig Quad v3 DIGITAL LED controller

(0 review)

All the benefits of the Dig Uno controller plus double the output channels and 30A continuous rating, this is a worth while upgrade.

The onboard QuinLED ESP32 module with WLED support comes in 3 different variants and preloaded software.

QuinLED Dig Quad perfectly integrates into your home automation or performs as a stand alone solution!

quinled
$ 55.99 $ 55.99
$ 55.99

$ 0.00 / Units
  • Dig Quad Configs
Add to cart
Add to wishlist
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Contact Us

Technical details:

  • QuinLED ESP32 based programmable LED controller with 4 independent output channels
  • Compatible to open firmware e.g. ESPhome, ESPpixelstick or custom Arduino code
  • Integrates with MQTT or Home Assistant native API (use WLED FW)
  • Remote control available via Android or iOS app (WLED FW)
  • Can be used for E1.31 with Xlights /Vixen software (use WLED or ESPpixelstick FW)
  • Uses 2 OZ copper allowing high current handling (up to 30A Continuous)
  • On-board 5x 5A fuse and reverse polarity protection
  • Compatible to 5V*, 12V**, 24V*** LED strips, strings or panels
  • On-board DS18B20 temperature sensor
  • 6 GPIO pins (e.g. Audio, PS Relay, IR control or I2C display)
  • Works with most currently available LED strips/strings or panels*

* ws2811, ws2812b, sk6812, APA102

**ws2811, ws2815

***ws2811, sk6812, tm1814

Product contents:

  • QuinLED Dig Quad LED controller board
  • QuinLED ESP32 WIFI module with USB-C interface *Depends on Variant
  • 5x 5A ATO fuses
  • NEW - bigger screw terminals for easier cable management
  • Pre flashed WLED firmware for instant use

Accessories

Some accessories you made need for you install
Some links are affiliate links and we may earn a small commission when you purchase through the link,  your price does not change and it doesn't affect any deals or coupons either.

Power Supply:

We always suggest Meanwell power supplies, very reliable and actually give you the power they state.

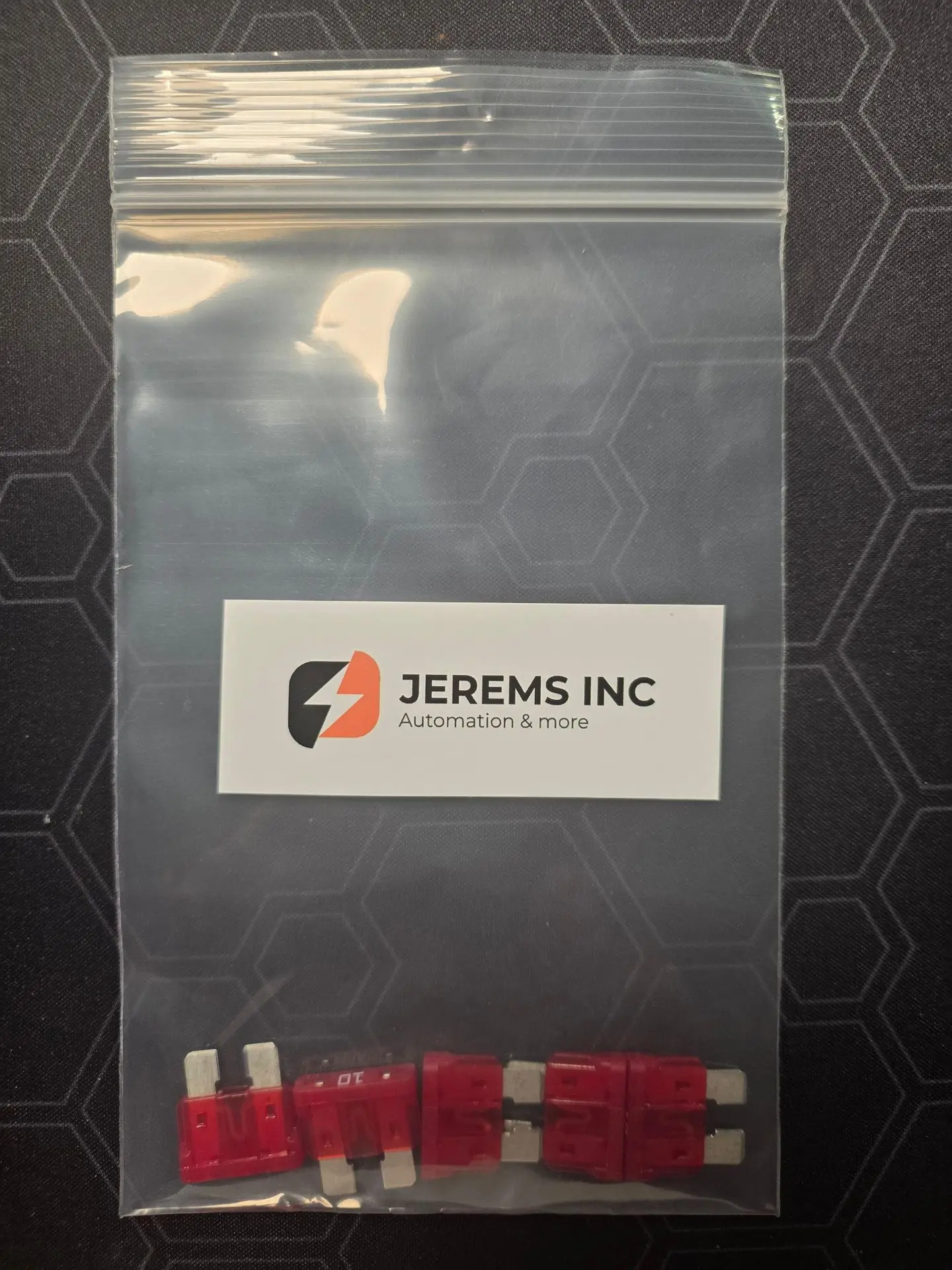

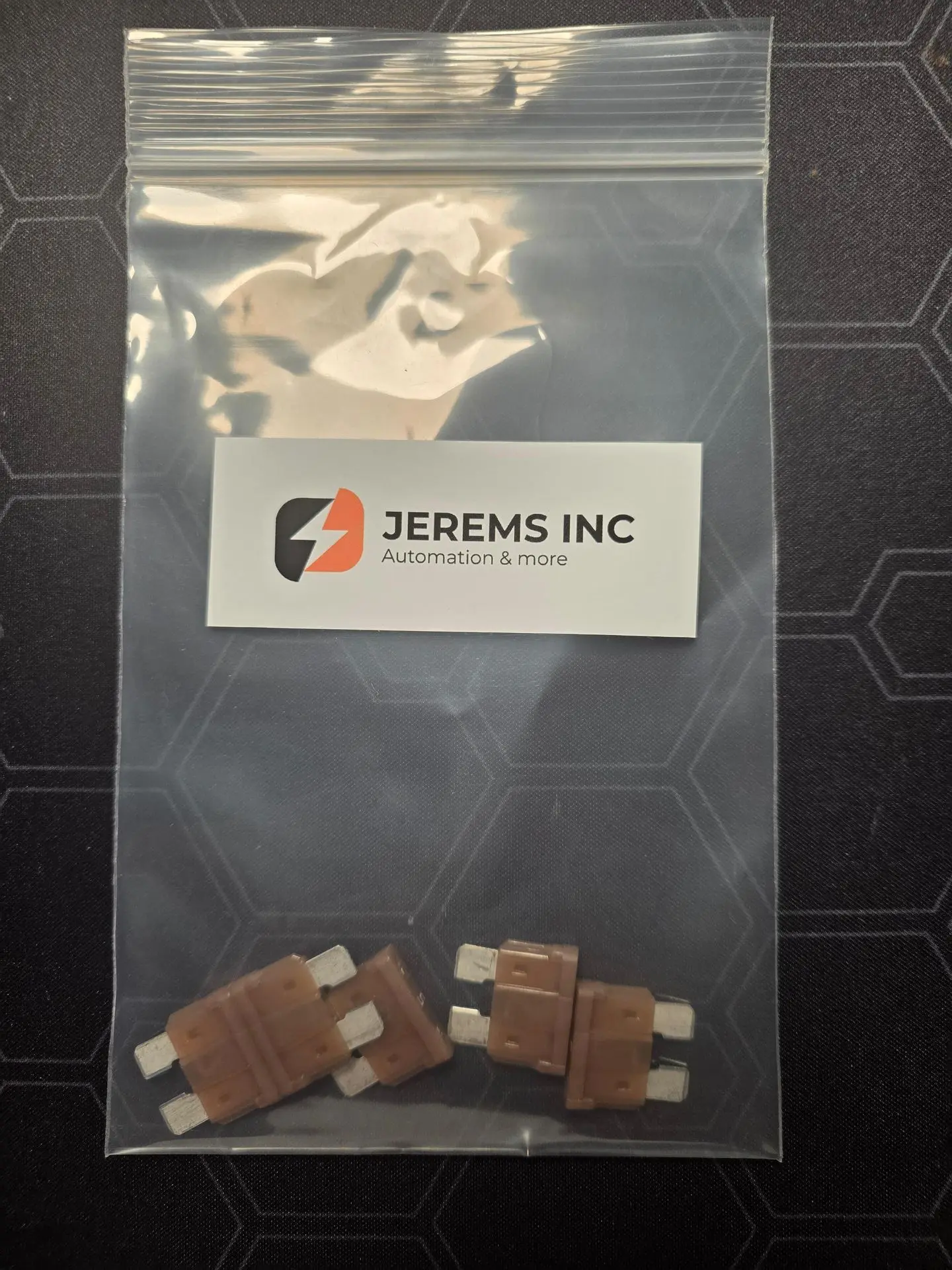

Fuses:

You will need ATO encase you miss-wire or blow the included unit, it's always better to have some spares.  We have official spares for sales that you can buy directly from us!


​

Misc. Accessories:

We sell a variety of accessories to help with your install like out Self-Closing Spit Braided Loom and our Dual Wall Adhesive Lined Heat Shrink to help make water tight connections
