At a glance
One Sender, one Receiver — entry-level distance extension
Long-distance runs between controller and LEDs over standard UTP
Converts LED data to a differential signal and back for a clean, long-range run
Sender and Receiver can run on separate, even differently-voltaged supplies — no shared GND needed
5V data signal with 33Ω resistor out of the Receiver board
Small size for narrow compartments, easy screw-hole mounting

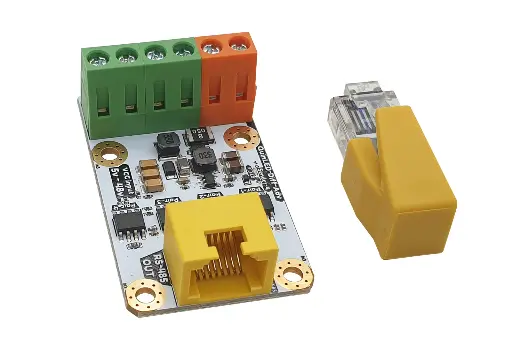

Diff-Solo is a 2-board system: the Sender sits near your data source (a controller like the Dig-Uno, Dig-Quad, or Dig-Octa System) and converts LED data to a differential signal; the Receiver sits near your LEDs and converts it back to a level-shifted data signal.
Sender board
- Input voltage: 5V-12V (auto input)
- Power draw: ~100mA at both 5V and 12V
- Supports 3.3V or 5V data signal logic
- 3-pole 5.08mm screw terminals (VCC, Data, GND), up to 14AWG with ferrule
- RJ45 socket output, differential signal
- Permanently installed termination resistor
- White PCB, 2x M3 mounting holes
Receiver board
- Input voltage: 5V-24V (auto input)
- Power draw: ~20mA across 5V/12V/24V
- 2-pole 5.08mm power input terminal, up to 14AWG with ferrule
- RJ45 socket signal input, differential signal
- Data output: level-shifted 5V with 33Ω resistor, 3-pole 5.08mm terminal (VCC, Data, GND)

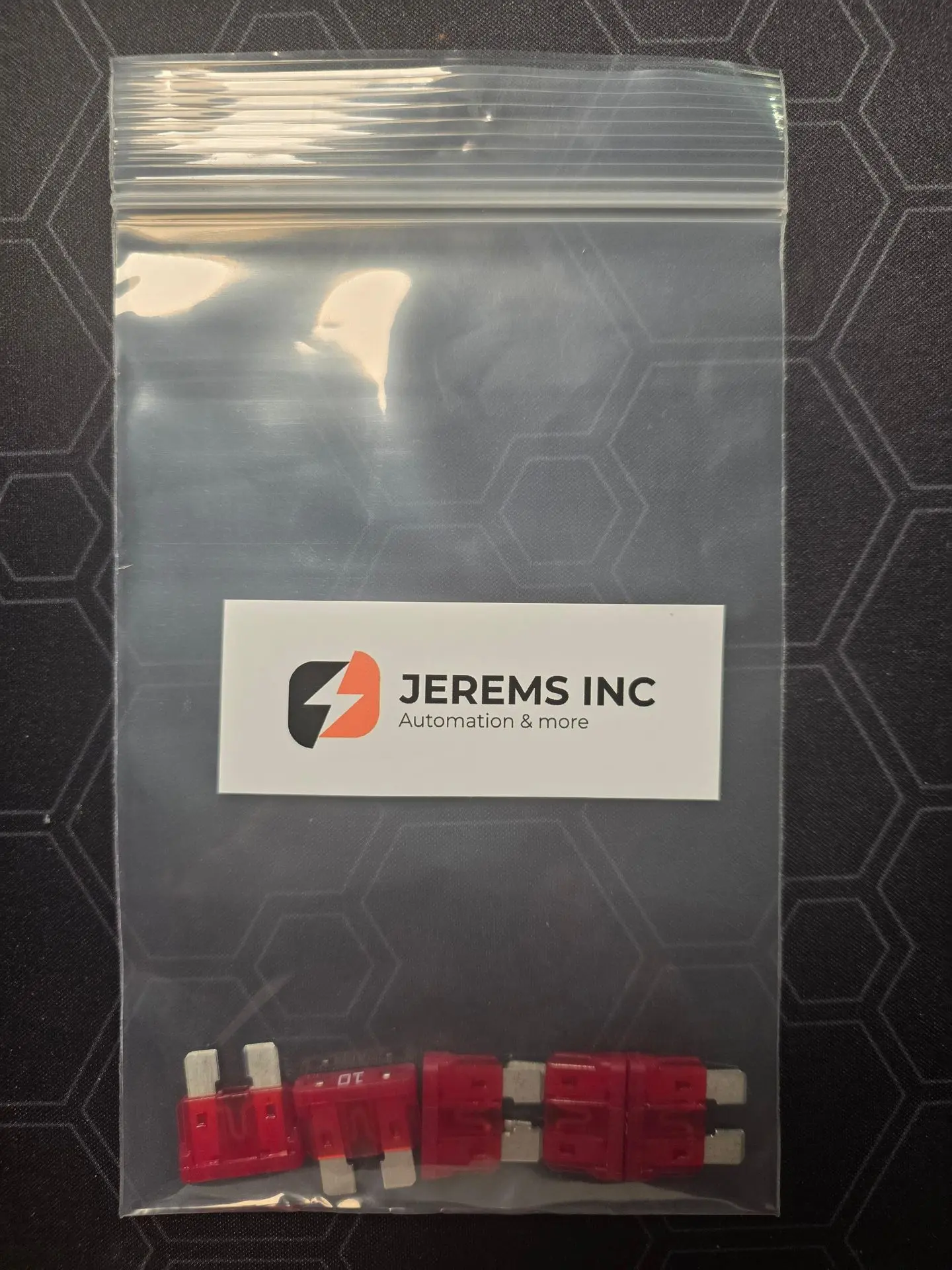

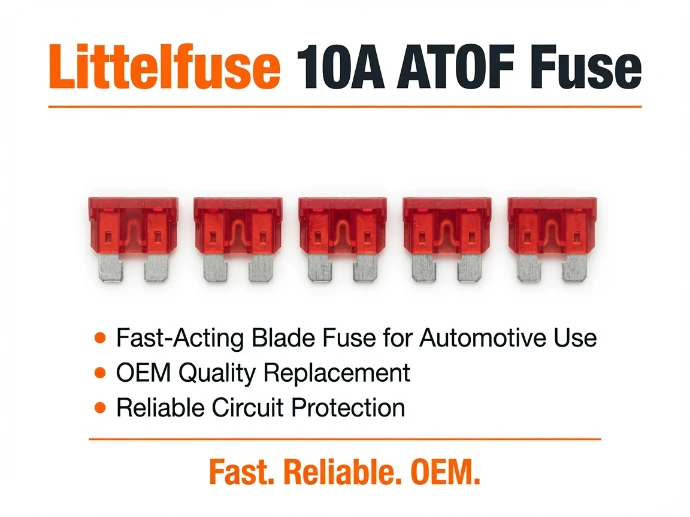

- Fusing: standard 5A fuse, 10A max supported
- Permanently installed termination resistor, blue PCB, 2x M3 mounting holes
Some links are affiliate links and we may earn a small commission when you purchase through the link — your price does not change and it doesn't affect any deals or coupons either.
Power supply
We always suggest Meanwell power supplies — very reliable, and they actually give you the power they state.

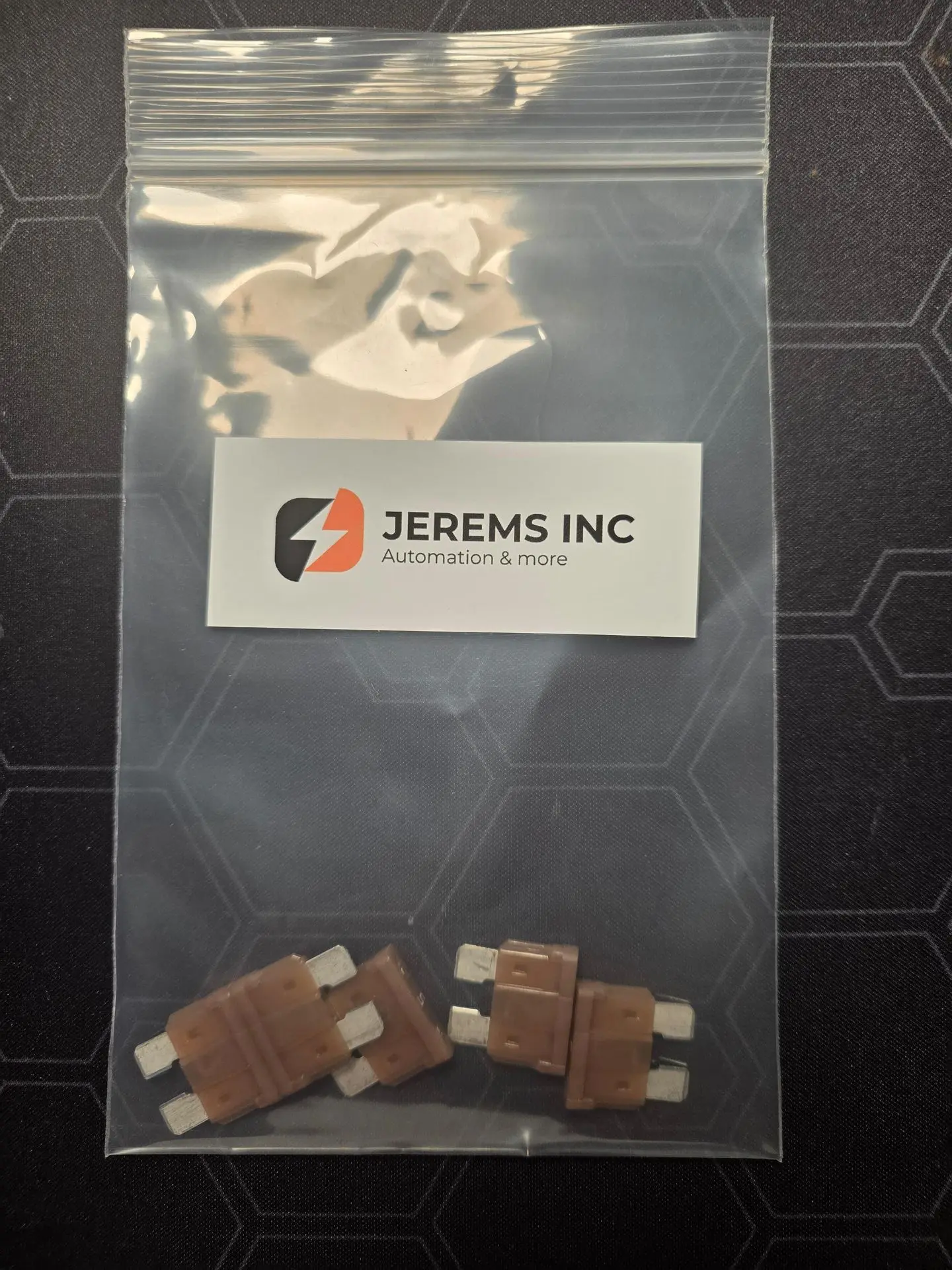

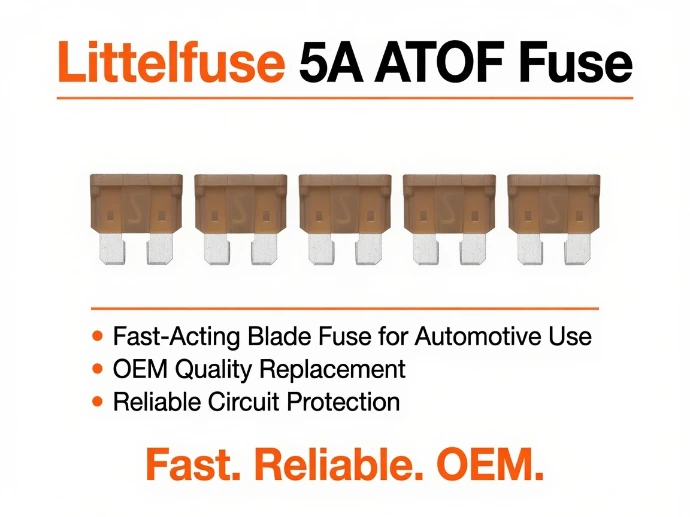

ATO Fuses, 5A (5pk)
