At a glance
2x M5 bolt-lug input terminals with increased copper thickness
Pre-installed protection for the high-current input
Works across the full Dig-Octa voltage range
7.62mm output screw terminals split across 3 sides of the board
Combine 2 outputs for up to 20A over 10AWG cable
Powers the Brainboard through the mounting posts — no extra wiring needed

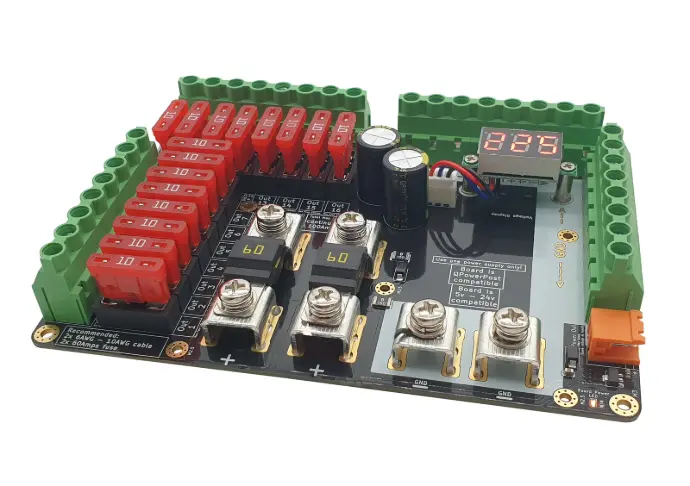

Board specifications
- 2x M5 bolt lugs for positive and negative input, with increased copper thickness
- Board recommended max 100A continuous load total
- 16x 7.62mm output screw terminals, split across 3 sides of the board
- 5V-24V capable
- Equipped with 2x 60A input fuses
- "Broken Fuse" light per output
- Onboard capacitors
- Onboard voltage display
- 4x M3 mounting holes
Special features
- Equipped with QPowerPost — power distribution to the Brainboard without wires (standard on every Dig-Octa power board)
- Extra 1x 5.08mm pluggable terminal (VCC and GND out)
- Double up feature — combine 2 positive and 2 negative output terminals via an SV5.5-5 fork crimp for up to 20A over 10AWG/5.2mm² cable, run over 2 ports
Videos on the Dig-Octa System
Guides & tutorials
Tools & community
Some links are affiliate links and we may earn a small commission when you purchase through the link — your price does not change and it doesn't affect any deals or coupons either.
Power supply
We always suggest Meanwell power supplies — very reliable, and they actually give you the power they state.
Mean Well LRS Series 350W — 12V & 24V
Skip Amazon and the border altogether — we stock both the 12V (LRS-350-12) and 24V (LRS-350-24) versions and ship them fast, right from here in Canada. Same genuine Meanwell quality, no import hassle. Choose your voltage on the product page.
🛒 Buy Direct — $54.99 CADNeed a different wattage? Other Meanwell LRS models, available on Amazon:
Fuses

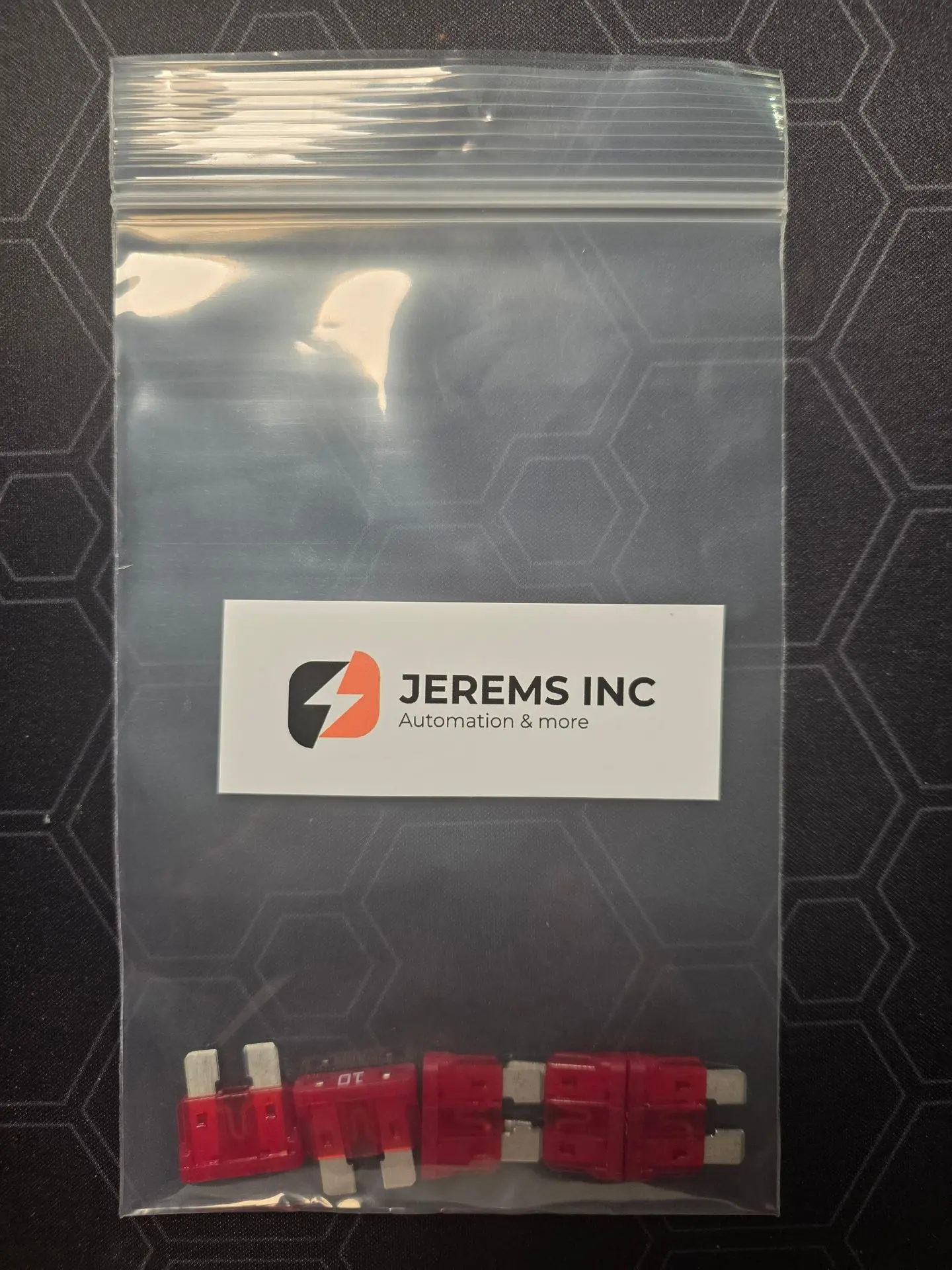

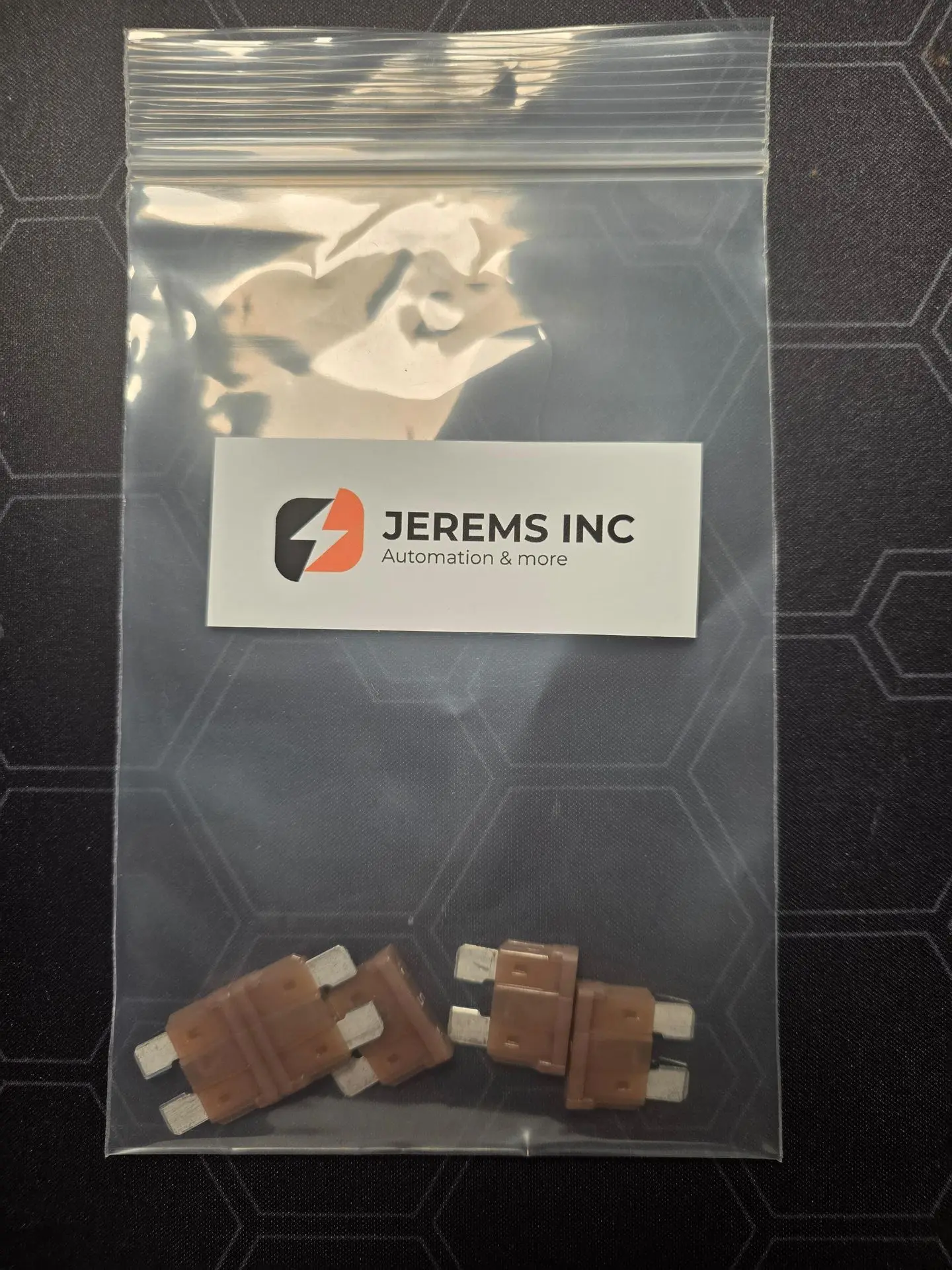

You'll want ATO spares in case you miss-wire or blow the included fuse. We sell official spares directly.
