At a glance
3x barrier-block input terminals for large-gauge cabling
Works across the full Dig-Octa voltage range
7.62mm output screw terminals split across 3 sides of the board
Combine 2 outputs for up to 20A over 10AWG cable

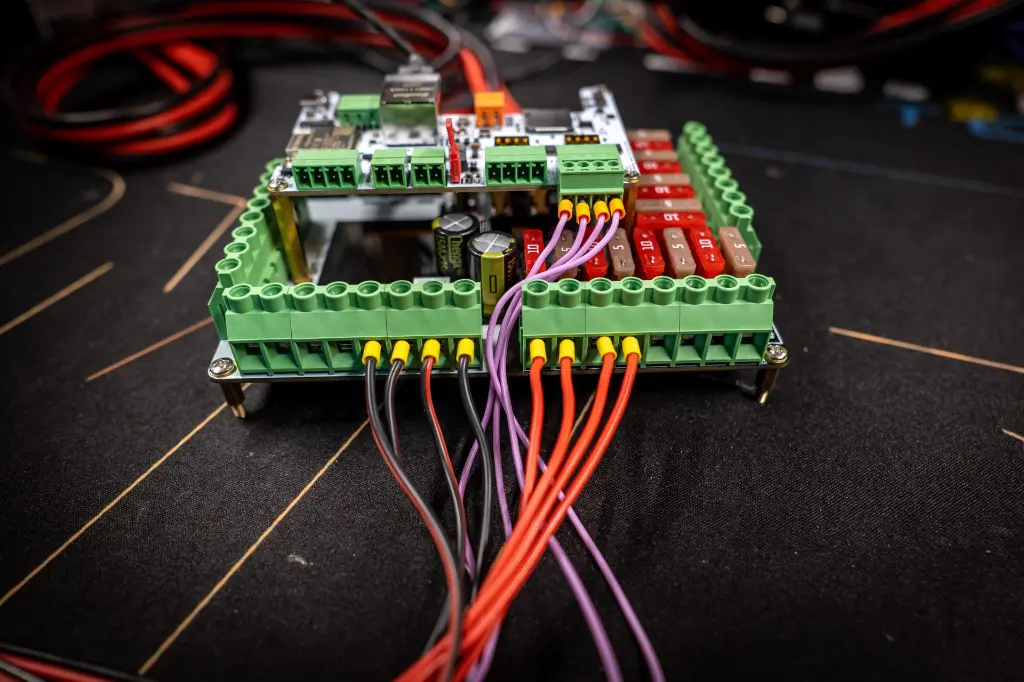

Powers the Brainboard through the mounting posts — no extra wiring needed
Per-output LED lights up the moment a fuse blows

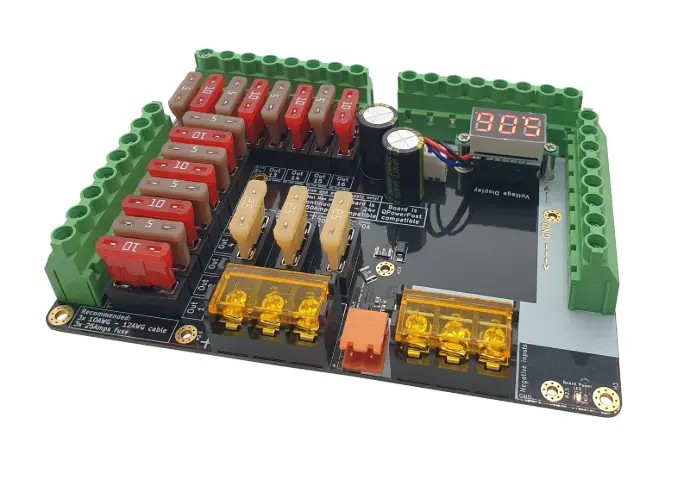

Board specifications

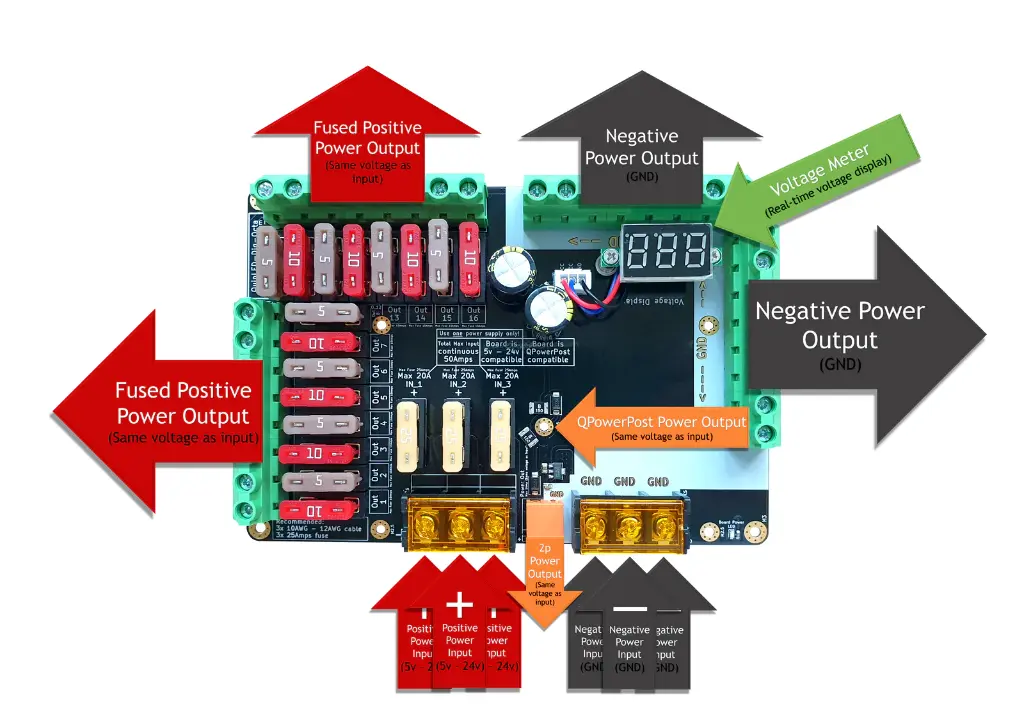

- 3x 9.5mm "barrier block" input terminals for both positive and negative, for large-gauge cabling
- Board recommended max 50A continuous load total
- 16x 7.62mm output screw terminals, split across 3 sides of the board
- 5V-24V capable
- "Broken Fuse" light per output
- Onboard capacitors
- Onboard voltage display
- 4x M3 mounting holes
Special features

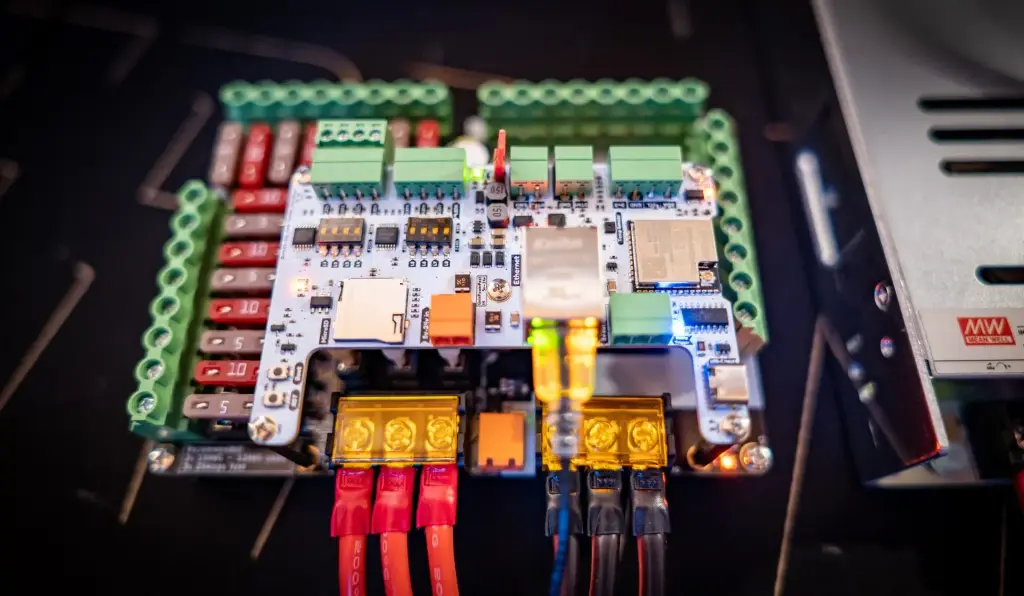

- Equipped with QPowerPost — power distribution to the Brainboard without wires (standard on every Dig-Octa power board)
- Additional 1x 5.08mm pluggable terminal (VCC and GND out)
- Double up feature — combine 2 positive and 2 negative output terminals via an SV5.5-5 fork crimp for up to 20A over 10AWG/5.2mm² cable, run over 2 ports
