QuinLED Dig-Octa Power-5

https://www.jeremsinc.ca/web/image/product.template/26436/image_1920?unique=0719abe
(0 review)

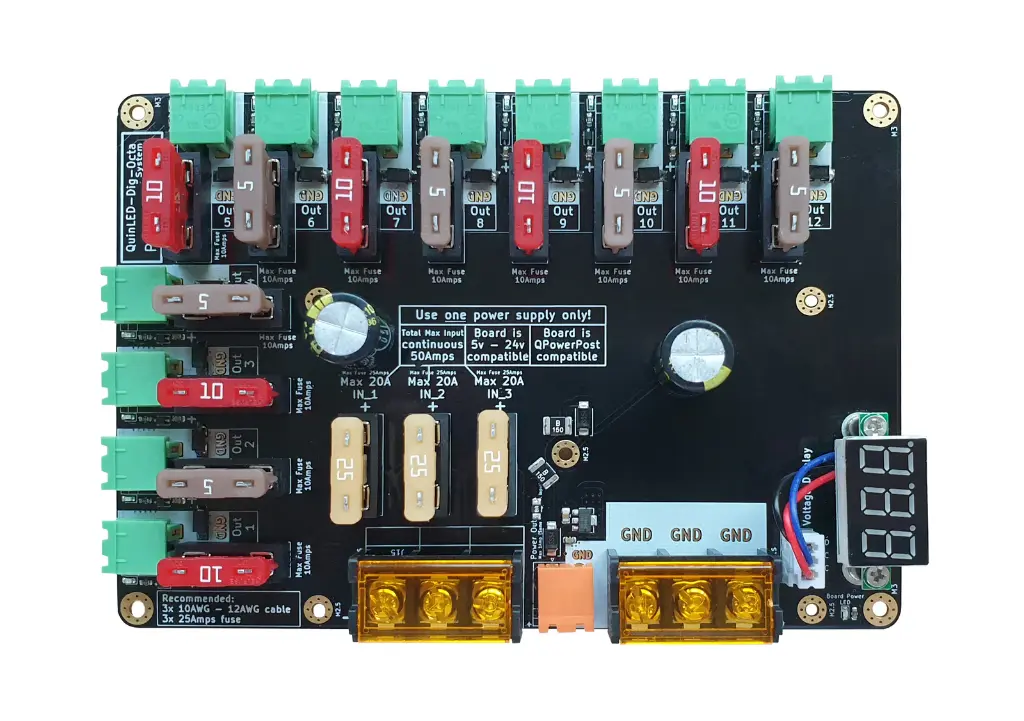

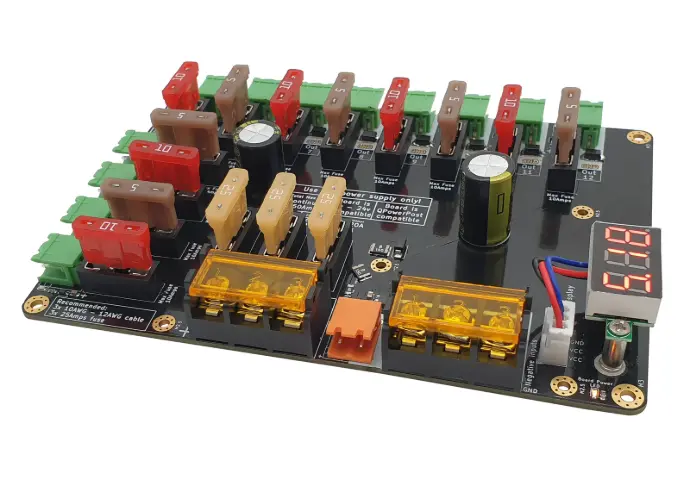

The Dig-Octa Power-5 power board provides stable power distribution via its 12 pluggable output terminals.

It's stackable and has the standardized form factor of all power boards in the Dig-Octa line of products. 5V to 24V compatible power board rated up to 50A continuous.

Pairs perfectly with the Dig-Octa Brainboard.

Check out the Getting Started Guide.

50.99 50.99 CAD 50.99

50.99

Not Available For Sale

(0.00 / Units)

This combination does not exist.

quinled

Terms and Conditions
Shipping: 1-2 Business Days for in stock items

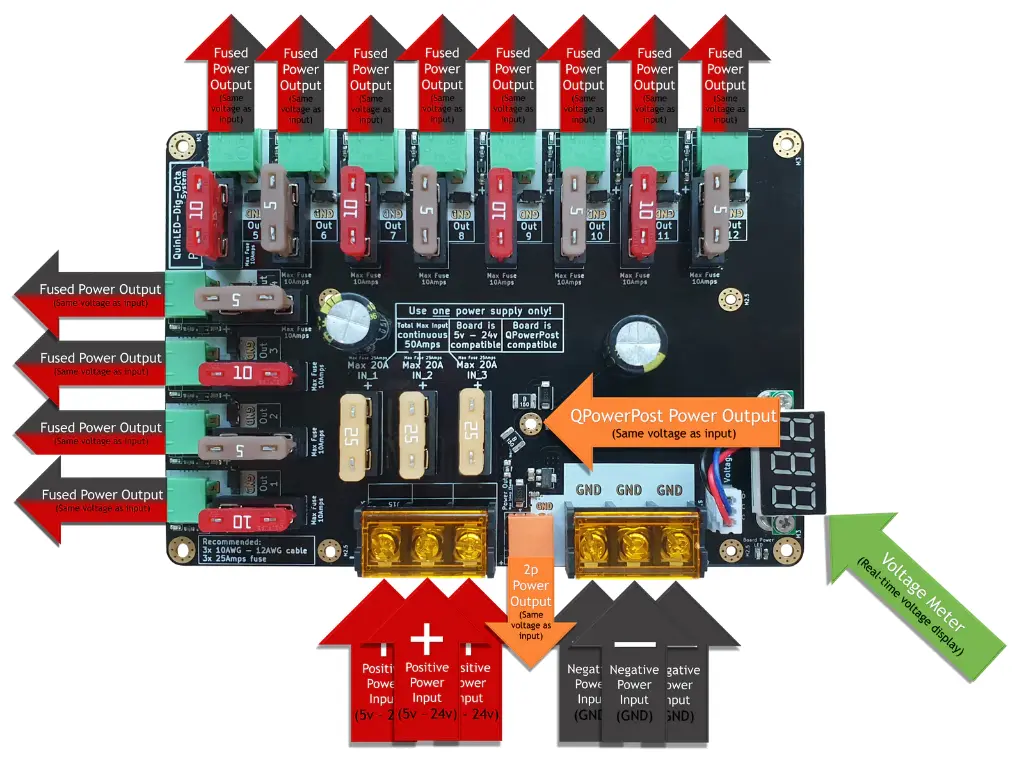

Product Specifications:

  • 3x 9.5mm “barrier block” input terminals for both positive and negative to allow for large guage cabling
  • Board recommended max 50Amp continuous load total
  • 12x 5.08mm pluggable output terminals
  • 5v-24v capable
  • “Broken Fuse” light per output
  • Onboard capacitors
  • Onboard Voltage display
  • 4x M3 mounting holes

Special features:

  • Equipped with QPowerPost* (power distribution without wires)
  • Additional 1x 5.08mm pluggable terminal (VCC and GND out)

*QPowerPost is a smart and unique solution to supply power via power posts to the brainboard in a stack. All power boards in the Dig-Octa line of products provide this feature.  It allows a flexible and quick installation of the complete stack and works without additional wiring.

Some accessories you made need for you install
Some links are affiliate links and we may earn a small commission when you purchase through the link,  your price does not change and it doesn't affect any deals or coupons either.

Power Supply:

We always suggest Meanwell power supplies, very reliable and actually give you the power they state.

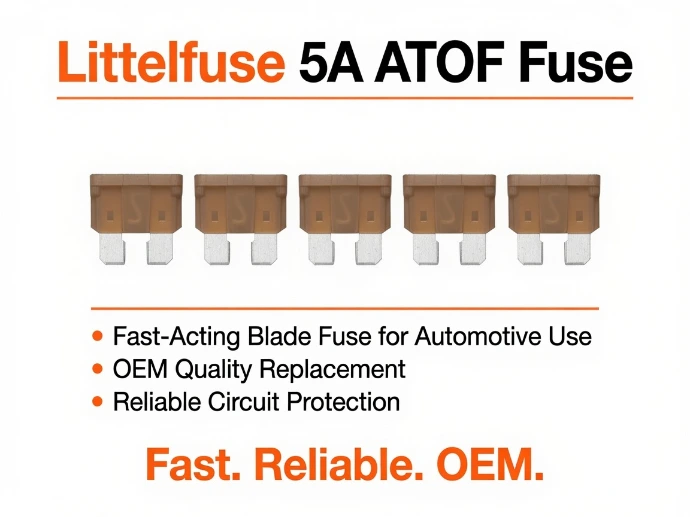

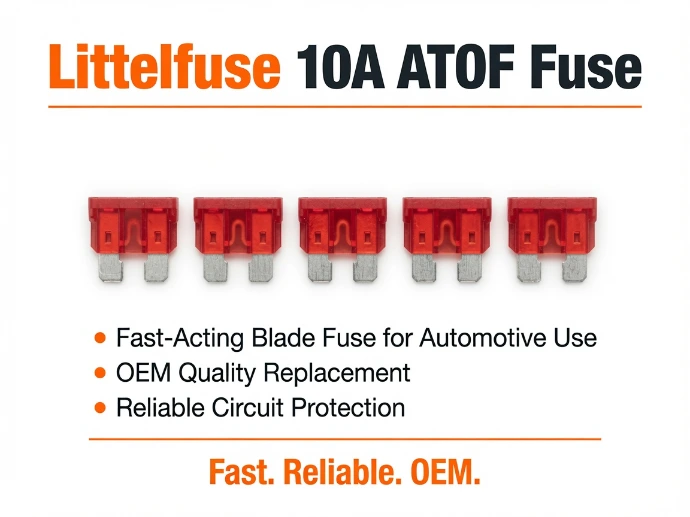

Fuses:

You will need ATO encase you miss-wire or blow the included unit, it's always better to have some spares.  There is a lot of cheap versions on fuses on amazon, I've used the below fuses without much issue but if you want a quality fuse stick with Littlefuse or Bussman Fuses




Misc. Accessories:

We sell a variety of accessories to help with your install like out Self-Closing Spit Braided Loom and our Dual Wall Adhesive Lined Heat Shrink to help make water tight connections
