QuinLED Dig2analog Plus RGBCW

(0 review)

Dig2analog+ enables your digital QuinLED controllers to manage analog LED strips!

The dig2analog+ is based on the WorldSemi WS2805 chip and is an upgrade to the dig2analog (non-plus) in various ways.

 The function of the board is still the same, the ws2805 is used to “extract” data from a digital LED data signal, it strips off the information for a single digital LED/Pixel and then transforms it to a PWM output able to drive Dumb/Analog 12V – 48V LED strips with PWM up to RGBCCT (RGB + dual white). It then sends on the rest of the data signal for another board to be picked up allowing you to daisy chain multiple of these boards!

In layman’s terms, the board acts like a single digitally addressable LED but allows you to run a whole LED strip as a single pixel. You can chain multiple boards behind each other and each acts as it’s own Pixel or LED in series.

quinled
$ 16.49 $ 16.49
$ 16.49

$ 0.00 / Units
Add to cart
Add to wishlist
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Contact Us

Upgraded features vs dig2analog (non-plus)

    • Higher voltage support
      • dig2analog = 12V-24V
      • dig2analog+ = 12V-48V
    • Higher total board power
    • Different fuse strategy
      • dig2analog = 3A PTC fuse
      • dig2analog+ = 6.3A replaceable fuse
    • High Power channels
      • dig2analog = 4x 3A max channel
      • dig2analog+ = 3x 3A max channel + 2x 5A max channel
    • High PWM frequency
      • dig2analog = 2kHz
      • dig2analog+ = 4kHz
    • More channels
      • dig2analog = RGBW
      • dig2analog+ = RGBCCT (RGB + Dual White)

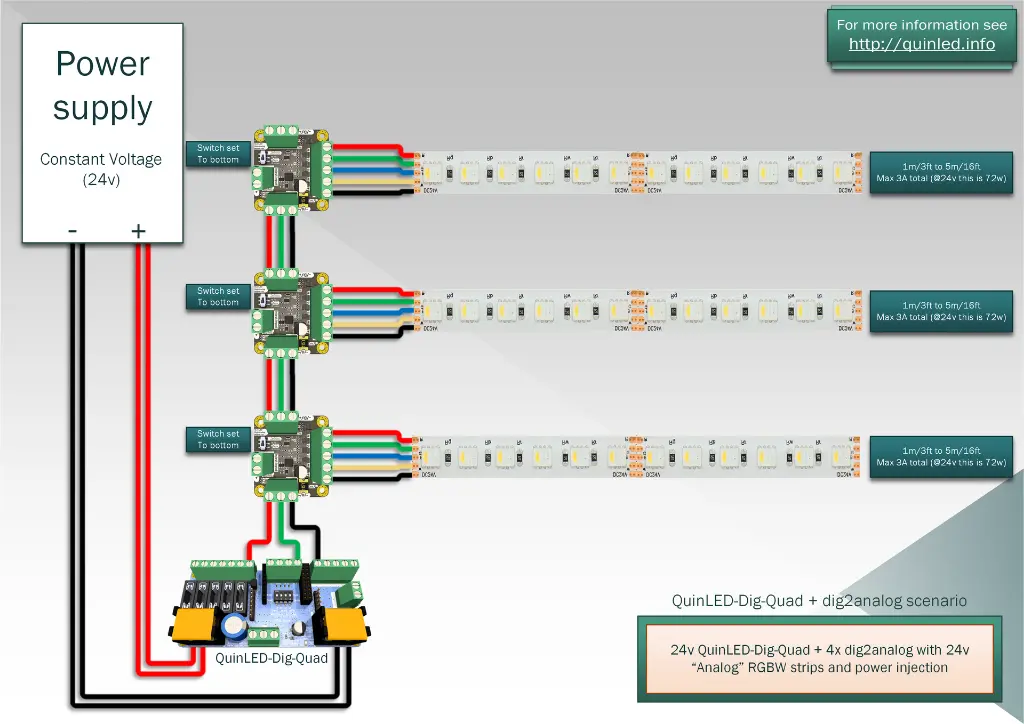

There are plenty of other use cases - please find the complete overview and set up instructions here:

https://quinled.info/quinled-dig2analog-plus/

Videos:


For more details please refer to:

Accessories

Some accessories you made need for you install
Some links are affiliate links and we may earn a small commission when you purchase through the link,  your price does not change and it doesn't affect any deals or coupons either.

Power Supply:

We always suggest Meanwell power supplies, very reliable and actually give you the power they state.


Fuses:

You will need ATO encase you miss-wire or blow the included unit, it's always better to have some spares.  There is a lot of cheap versions on fuses on amazon, I've used the below fuses without much issue but if you want a quality fuse stick with Littlefuse or Bussman Fuses

  ​ ​ ​

​


Misc. Accessories:

We sell a variety of accessories to help with your install like out Self-Closing Spit Braided Loom and our Dual Wall Adhesive Lined Heat Shrink to help make water tight connections
