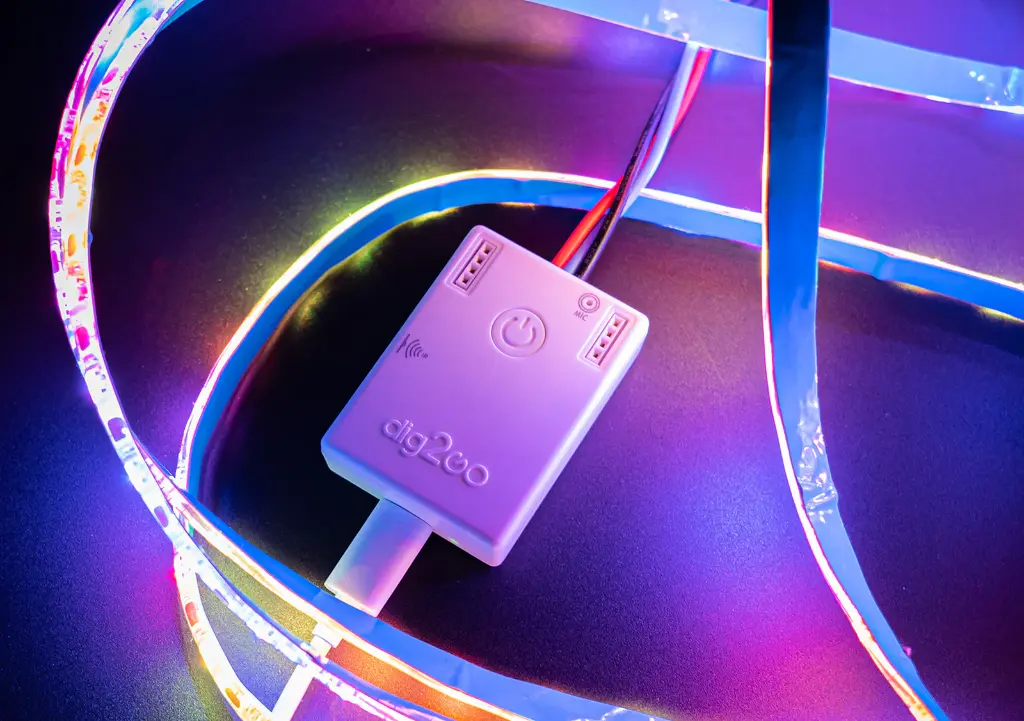

QuinLED dig2GO portable DIGITAL LED controller

https://www.jeremsinc.ca/web/image/product.template/26432/image_1920?unique=4501690
(0 review)

Easiest to use ESP32 based digital LED controller yet - small enough to take on the road!

Control your digital LED strip anywhere- now combined with power supply and LED strip options.

The rich feature set of this small pocket LED controller will surprise you!

It's never been easier to get started with addressable LEDs:

  1. Plug in the LEDs to the dig2GO
  2. plug in the USB-C cable to a power supply and you are done
  3. Set up WLED for full customization!

36.99 36.99 CAD 36.99

36.99

Not Available For Sale

(0.00 / Units)
  • dig2GO Configurations

This combination does not exist.

quinled

Terms and Conditions
Shipping: 1-2 Business Days for in stock items

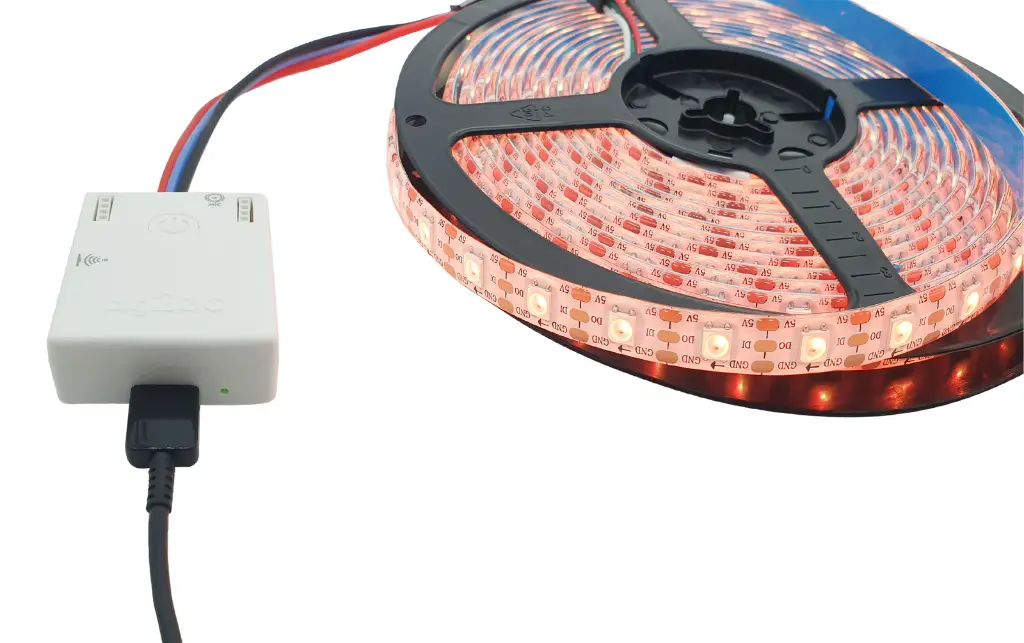

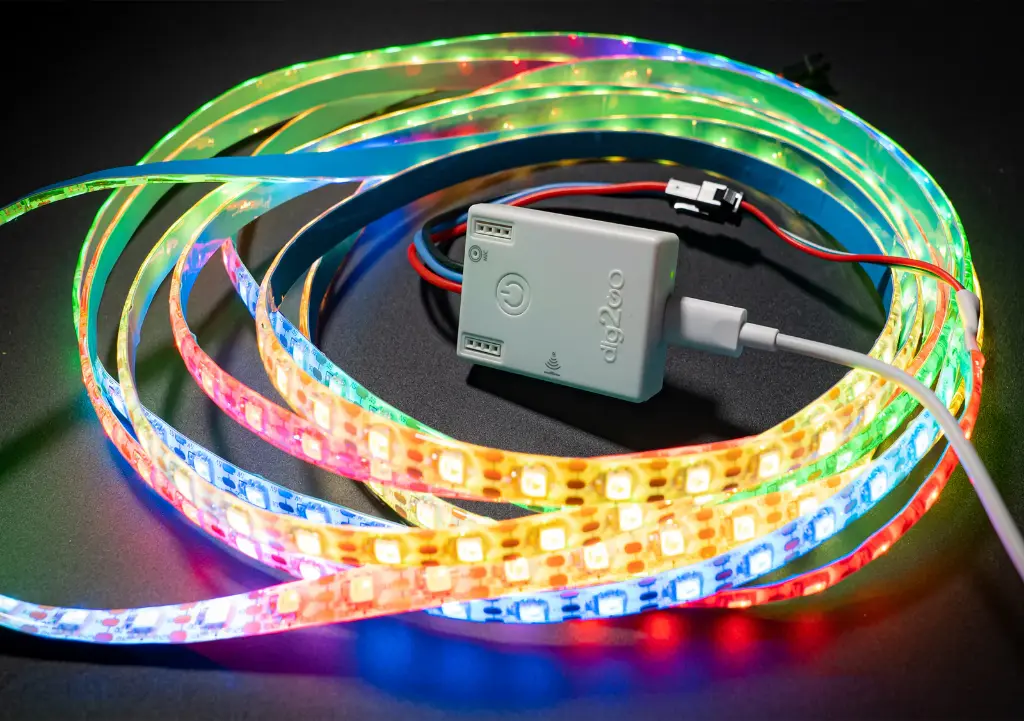

Perfect for your party or events now with WS2812x /SK6812 (60LED's/m) strips and power supply. Can alternatively be powered by a good USB power bank.

Interfaces and connectors:

  • USB-C connector (power, programming)
  • Digital Microphone
  • IR - remote controllable
  • ON/OFF button
  • Interface for additional accessories (dual socket header)

Max Power: 5V3A

Bundle contents:

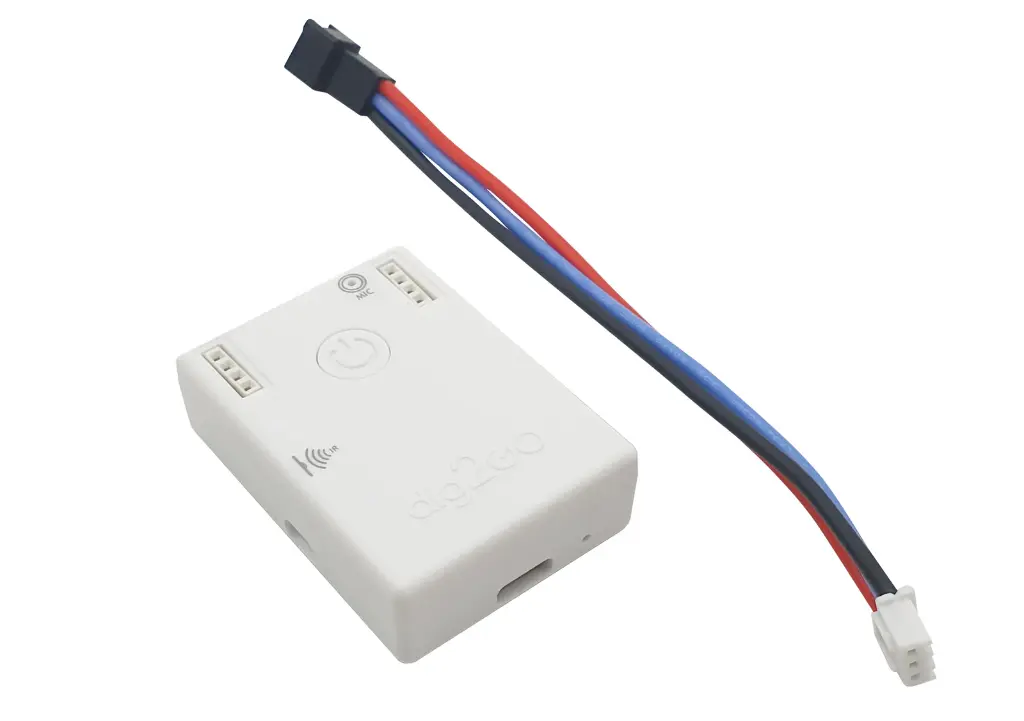

  • dig2GO portable controller
  • Pigtail for LED strip connection
  • Power supply 5V3A*
  • WS2812 (RGB /4m)IP65 or SK6812 (RGBW /5m) IP67, 60LED/m *
  • High power rated USB-A to C cable (1m) *

*Depends on variant selected

Video:


Get started with your new QuinLED dig2GO here:

Flash the latest firmware online here:

For more assistance and information:

Accessories

Some accessories you made need for you install
Some links are affiliate links and we may earn a small commission when you purchase through the link, your price does not change and it doesn't affect any deals or coupons either.

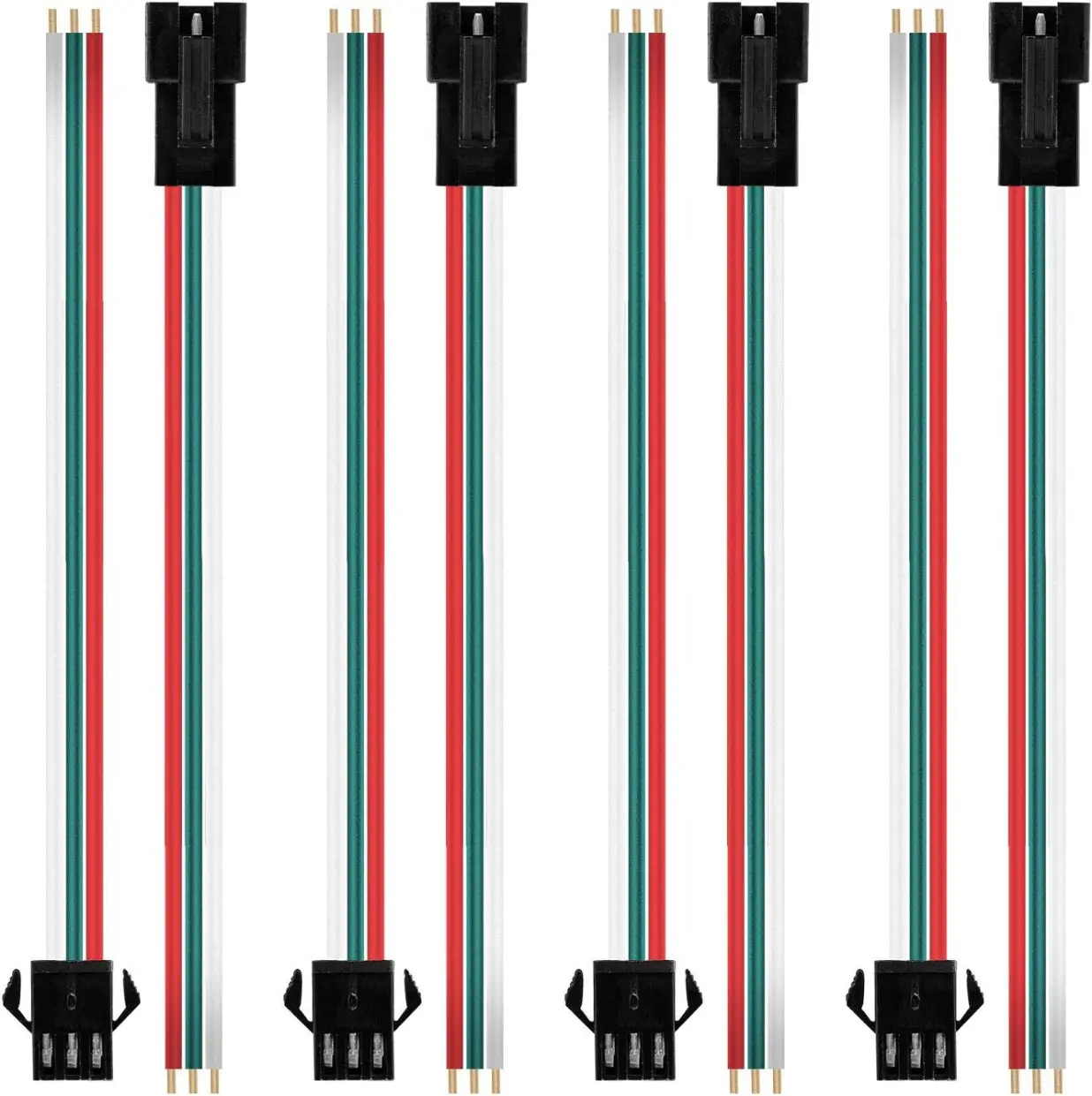

JST SM Leads:

If you need to split the LEDs into separate runs, use these connectors below to make connections to the next run easier.  These are the standard connectors on the LED Strips.

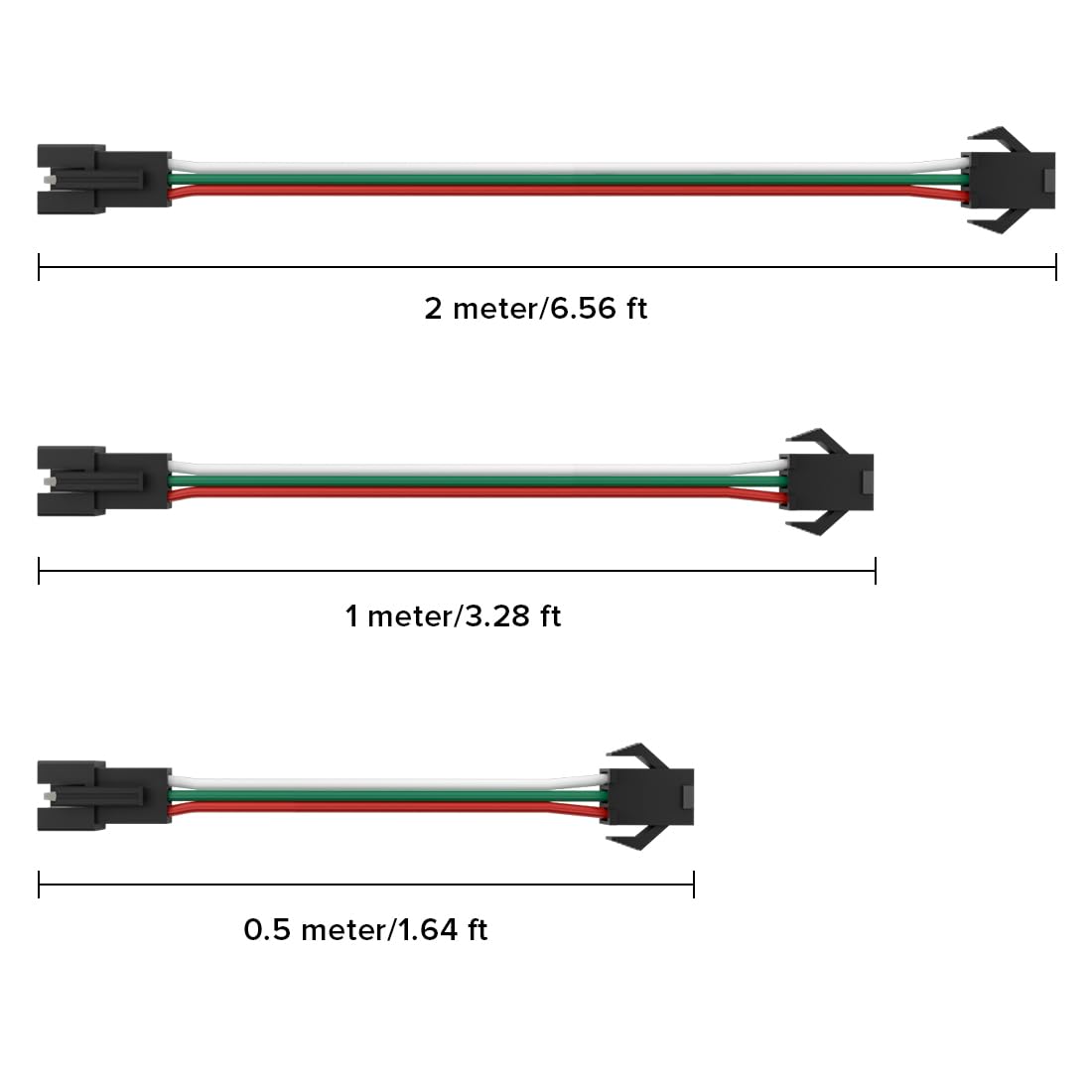

JST SM Extensions:

If you need to split the LED's into separate runs, use these connectors below to make connections to the next run easier.  These are only 22 awg so be mindful of how long you are running these.  Amperage won't be an issue but voltage drop could be.

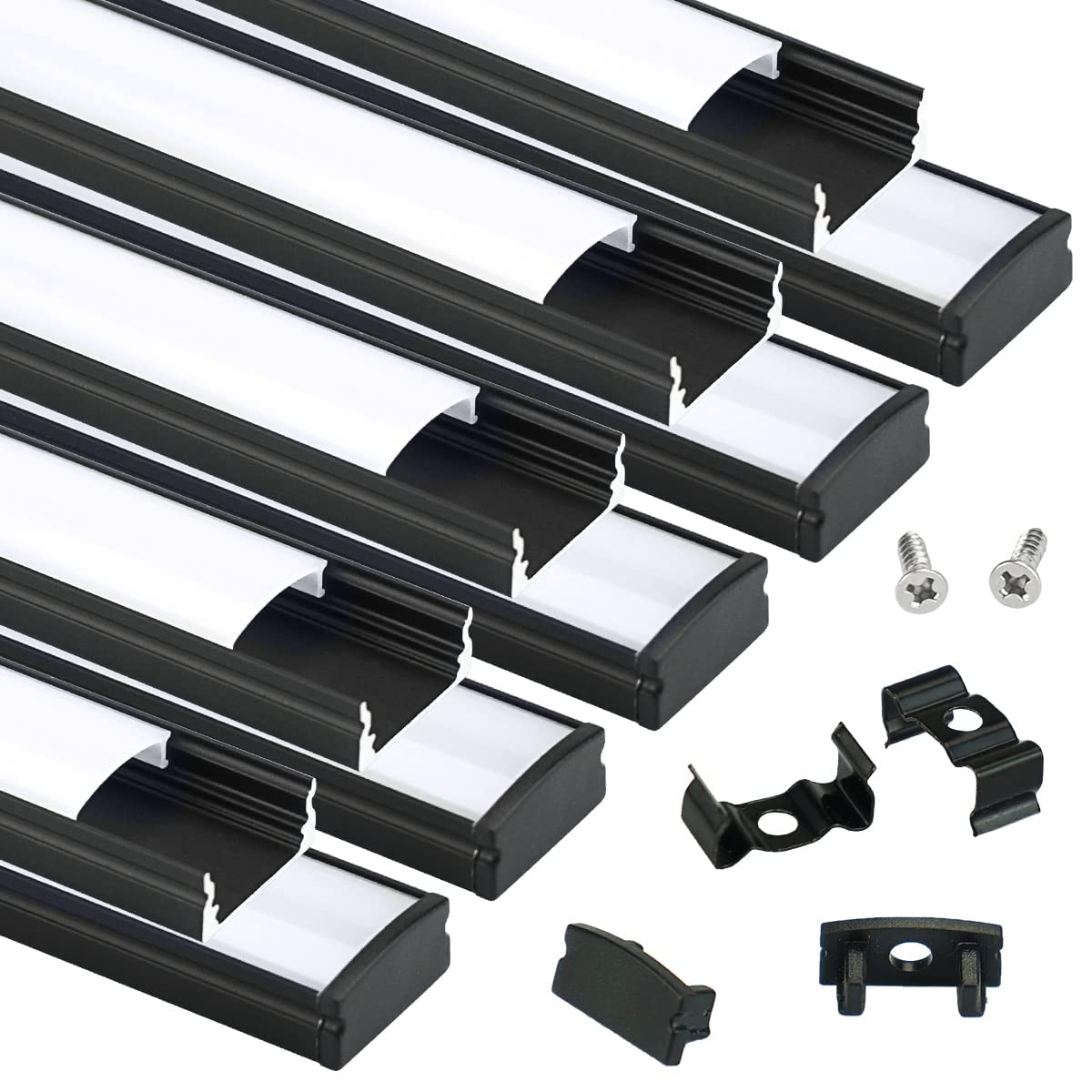

LED Aluminum Channel:

Nice channel for this style of LED lighting, good diffusion and comes will all the clamps and screws.

Misc. Accessories:

We sell a variety of accessories to help with your installation like our Self-Closing Spit Braided Loom and our Dual Wall Adhesive Lined Heat Shrink to help make water-tight connections
