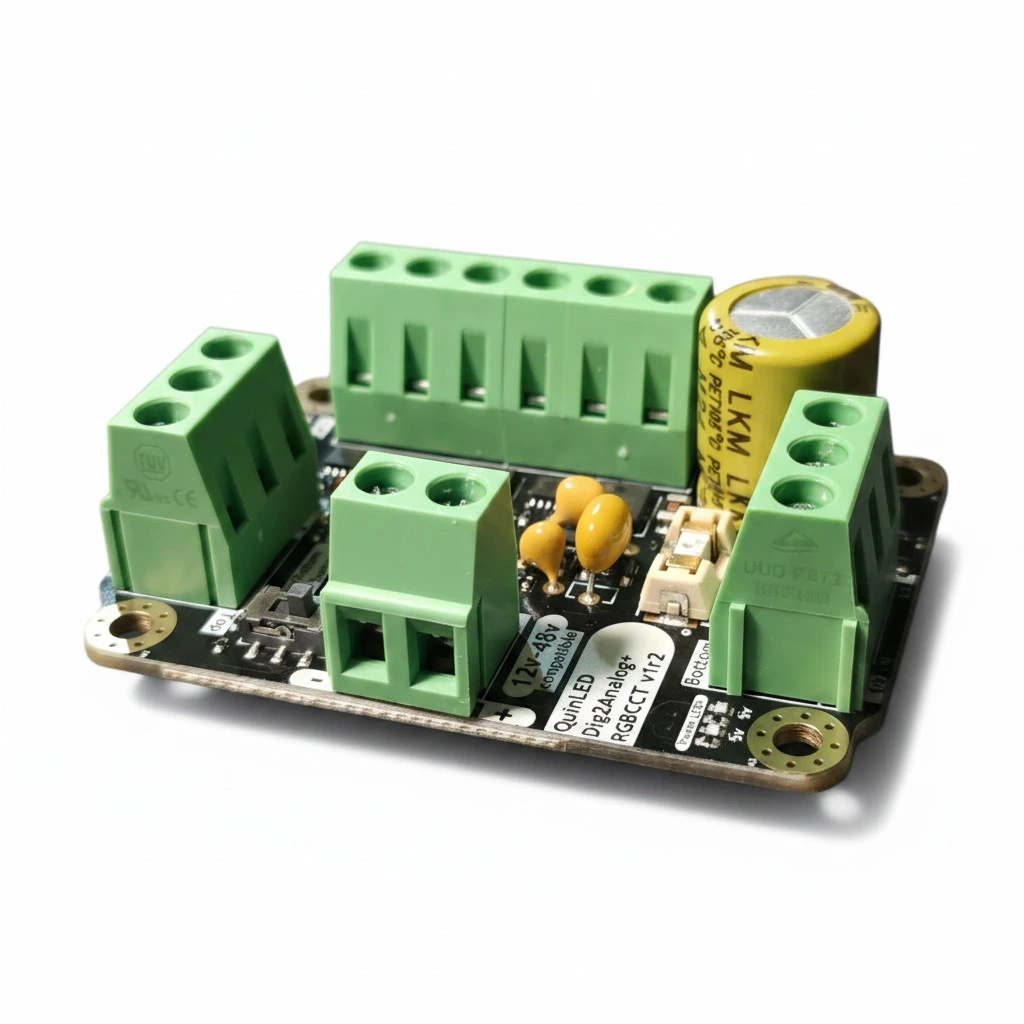

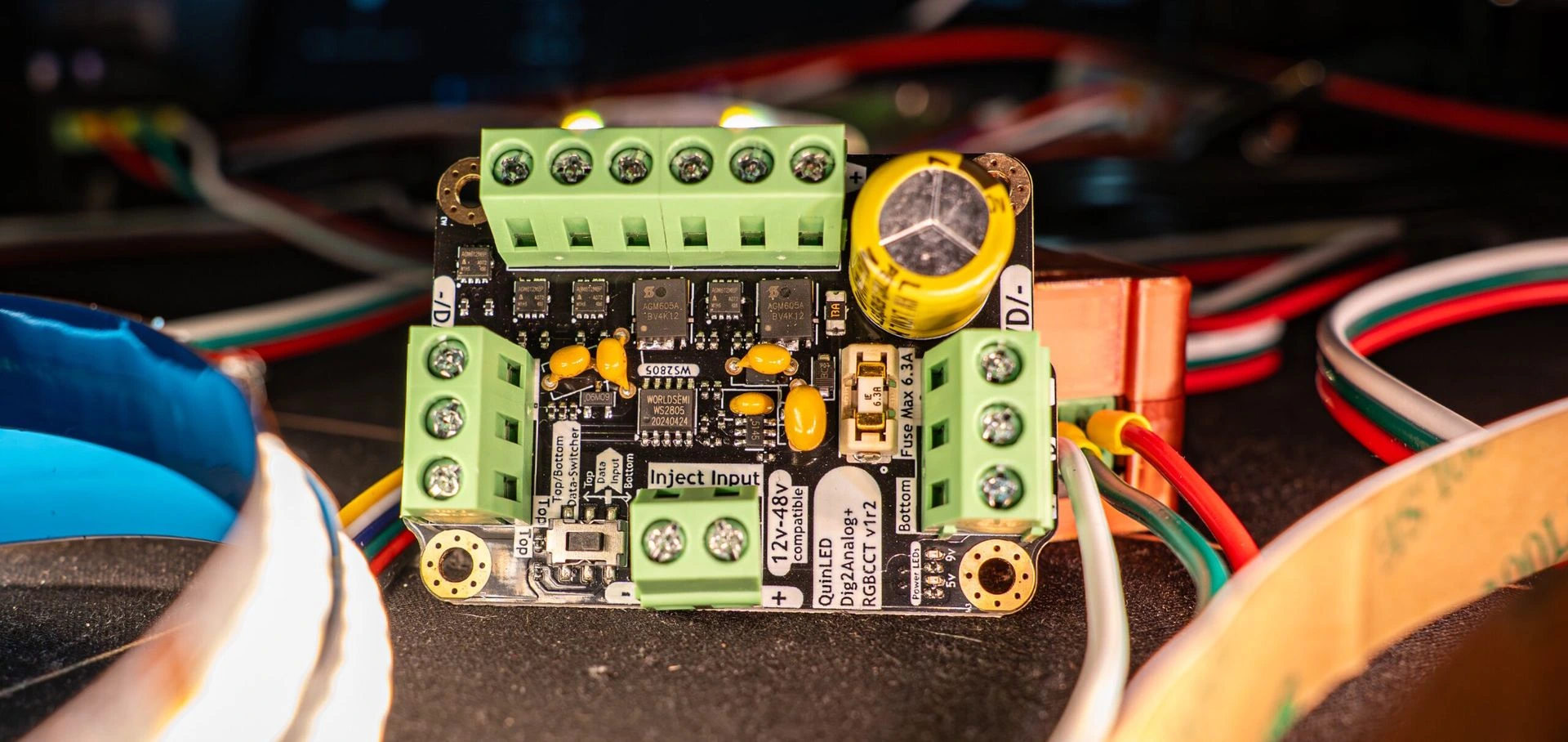

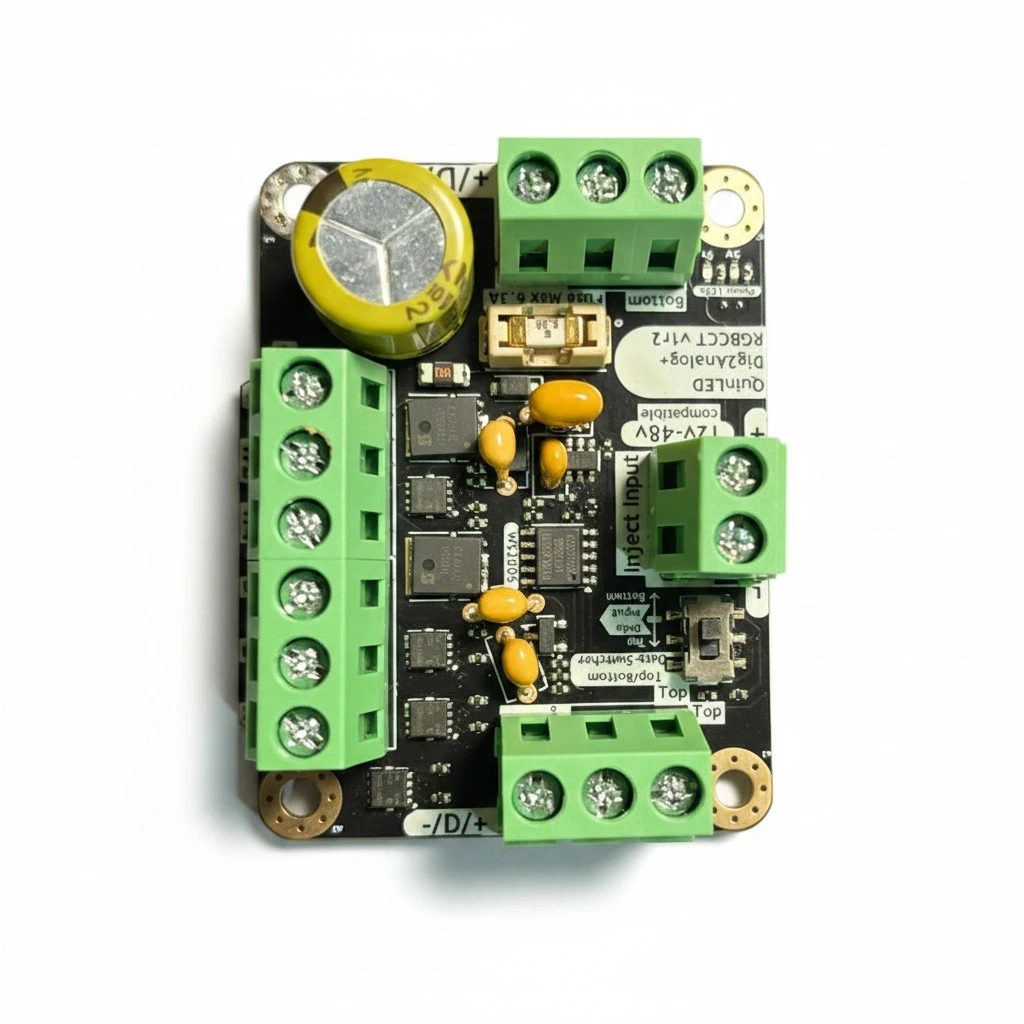

At a glance
Extracts a single pixel from a digital data signal
Wider voltage range than the standard dig2analog
Drives RGB + dual white (CCT) analog LED strips
3x 3A + 2x 5A max PWM channels
6.3A fuse, not a one-time PTC like the standard board
Chain multiple boards, each acting as its own pixel
How it works
- Based on the WorldSemi WS2805 chip, an upgrade to the original dig2analog
- Extracts the data for a single digital LED/pixel from the incoming signal and converts it to a PWM output
- Drives dumb/analog 12V–48V LED strips with PWM up to RGBCCT (RGB + dual white)
- Passes the rest of the data signal on, so multiple boards can be daisy-chained — each acting as its own pixel
Upgrades vs. dig2analog (non-plus)
- Voltage support: 12V–48V vs 12V–24V
- Total board power: 6.3A vs 3A (6A with modification)
- Fuse: 6.3A user-replaceable vs 3A PTC
- High-power channels: 3x 3A + 2x 5A vs 4x 3A
- PWM frequency: 4kHz vs 2kHz
- Channels: RGBCCT (RGB + dual white) vs RGBW
