At a glance

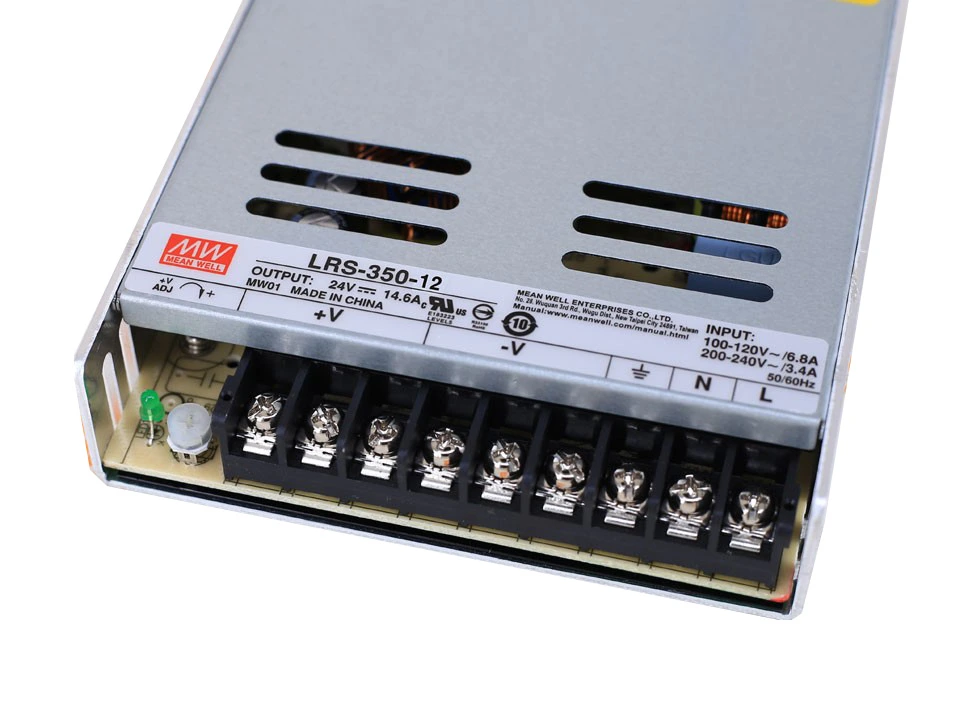

Choose LRS-350-12 (12 V / 29 A) or LRS-350-24 (24 V / 14.6 A) — MEAN WELL delivers the power it states
Fine-tune for LED strip voltage drop or controller requirements (range depends on voltage variant)
Compact 215 × 115 × 30 mm enclosed chassis for tight enclosures
Switch-select AC input range for North American or international mains
Short circuit, overload, over-voltage, and over-temperature protection
Built-in DC fan with automatic ON/OFF control for quieter light loads
Before you wire it up
Set the 115 / 230 VAC selector switch to match your mains before applying power. Wrong setting can damage the supply. For LED installs, size wire for the current (up to 29 A on 12 V / 14.6 A on 24 V) and leave clear airflow around the fan exhaust.
Output by variant
- Models: LRS-350-12 (12 V) and LRS-350-24 (24 V)
- LRS-350-12: 12 V · 29 A · 348 W · adj. 10.2–13.8 V
- LRS-350-24: 24 V · 14.6 A · 350.4 W · adj. 21–28 V
- Ripple & noise (max.): 150 mVp-p (12 V) / 150 mVp-p (24 V)
- Voltage tolerance: ±1.5%
- Line / load regulation: ±0.5% / ±1.0%
Input & environment
- AC input: 90–132 VAC / 180–264 VAC (by switch)
- DC input: 240–370 VDC (switch on 230 VAC)
- Frequency: 47–63 Hz
- Efficiency (typ.): 85% (12 V) / 88% (24 V)
- Working temp: −25 to +70 °C (see derating curve)
- No-load consumption: < 0.75 W
Build & protection
- Forced-air cooling with fan ON/OFF control
- Short circuit / overload / over-voltage / over-temperature
- Withstands 5G vibration test; power-on LED
- Dimensions: 215 × 115 × 30 mm · ~0.76 kg
- Manufacturer warranty: 3 years (MEAN WELL)
Official docs
Support
Best suited for 12 V or 24 V LED strip systems, QuinLED Dig boards, and industrial control panels that need stable high-current DC. Select your voltage when adding to cart.
Pair this supply with proper wiring, strain relief, and enclosure airflow for a clean, durable install.
