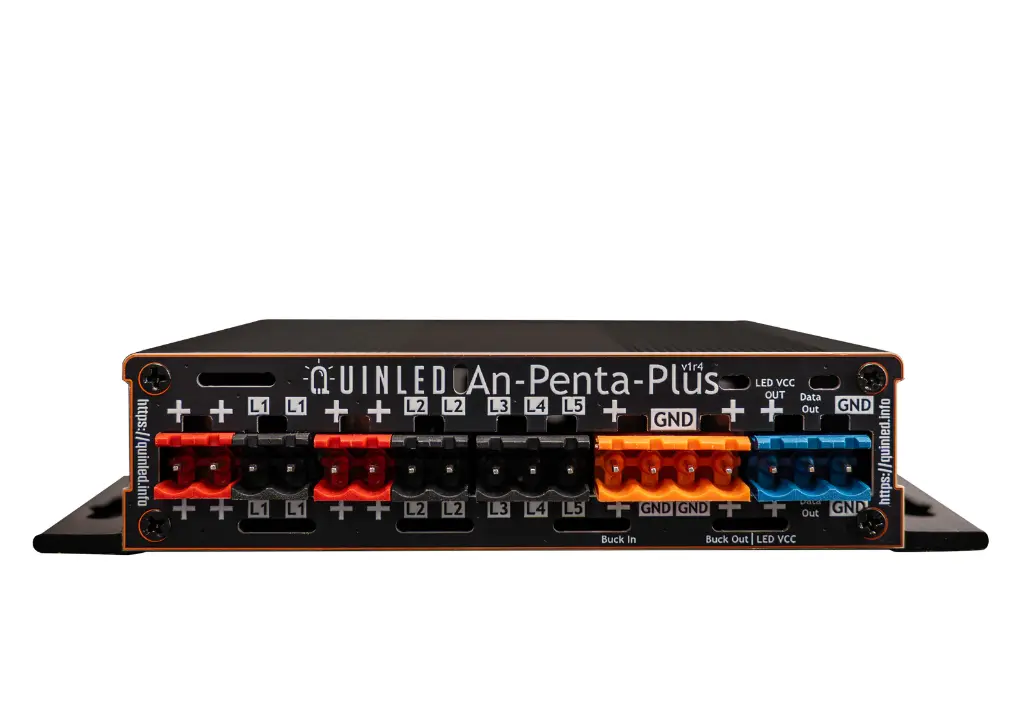

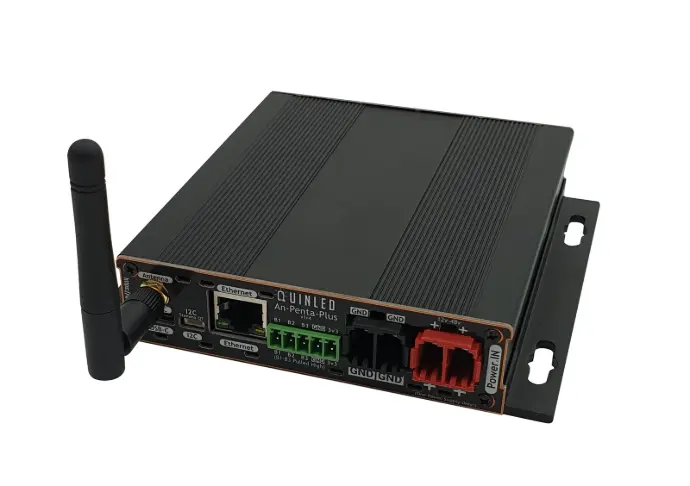

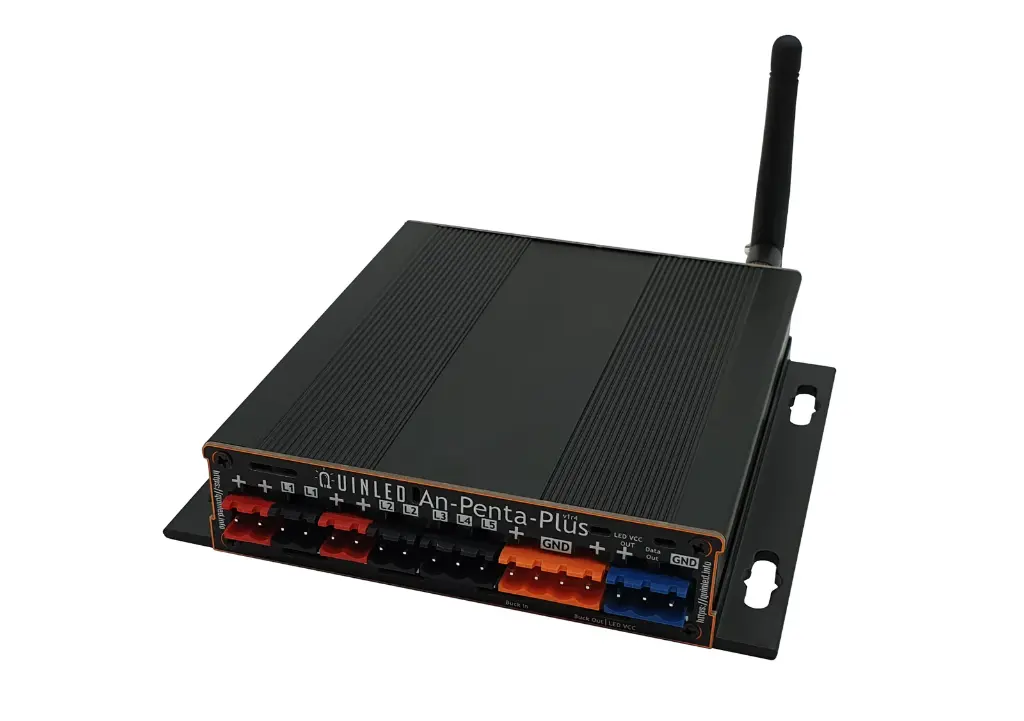

QuinLED AN-Penta-Plus

(0 review)

The QuinLED An-Penta-Plus — an ESP32 based 5 channel Analog +1 channel Digital Hybrid LED controller with high power rating.

A sizable step up from the AN-Penta-Mini. Managed via WLED or ESPHome, it configures up to 5x white LED strips, 2x CCT strips, RGB, RGBW, RGB+CCT or any combination of up to 5 channels, with a max power rating of 30A total and up to 10A per output channel.

All screw terminal plugs are included in the package. A great option for brighter, higher-powered main lighting installs.

quinled
$ 64.99 $ 64.99
$ 64.99

$ 0.00 / Units
Add to cart
Add to wishlist
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Contact Us

At a glance

ESP32 hybrid controller

5 analog channels + 1 digital output

30A total / 10A per channel

High-power analog LED dimming

Ethernet + external antenna

Wired or WiFi connectivity onboard

Fused outputs

Replaceable 1808 SMD-style fuses

I2C + button inputs

Expandable with sensors and physical controls

WLED & ESPHome ready

Native Home Assistant compatibility

Channels & control
  • 5x PWM LED high-power output channels (up to RGBCCT)
  • Plus 1x extra digital output
  • Managed via WLED or ESPHome
  • USB-C programmable

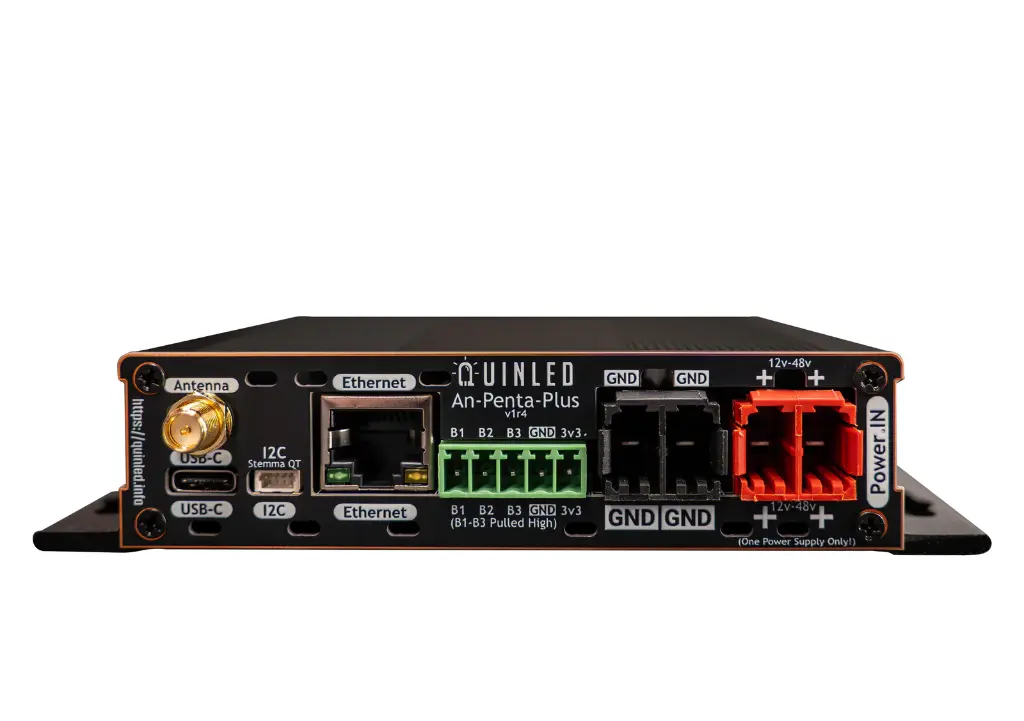

Power & connectivity
  • Max power rating: 30A total, up to 10A per output channel
  • External antenna + onboard Ethernet
  • Fused positive outputs, replaceable 1808 SMD-style fuses
  • Dedicated button input terminals
  • I2C port for sensors, etc.
  • All screw terminal plugs included

Some links are affiliate links and we may earn a small commission when you purchase through the link — your price does not change and it doesn't affect any deals or coupons either.

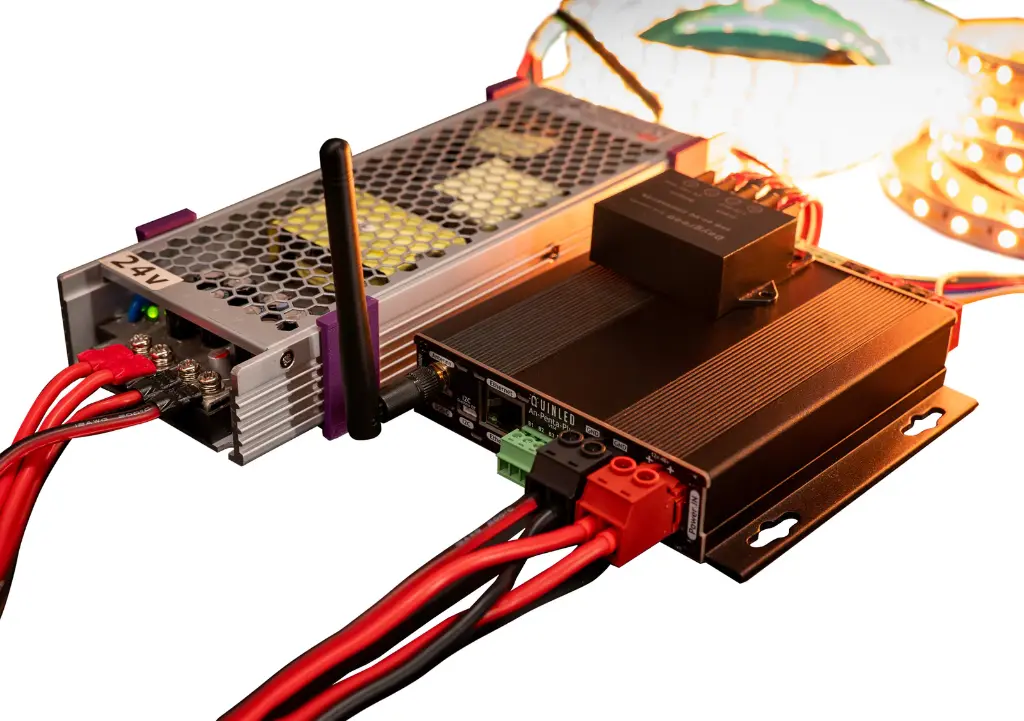

Power supply

We always suggest Meanwell power supplies — very reliable, and they actually give you the power they state.

Meanwell power supply, recommended for powering this board
Meanwell Power Supply

Reliable, and actually delivers the power it states.

View on Amazon

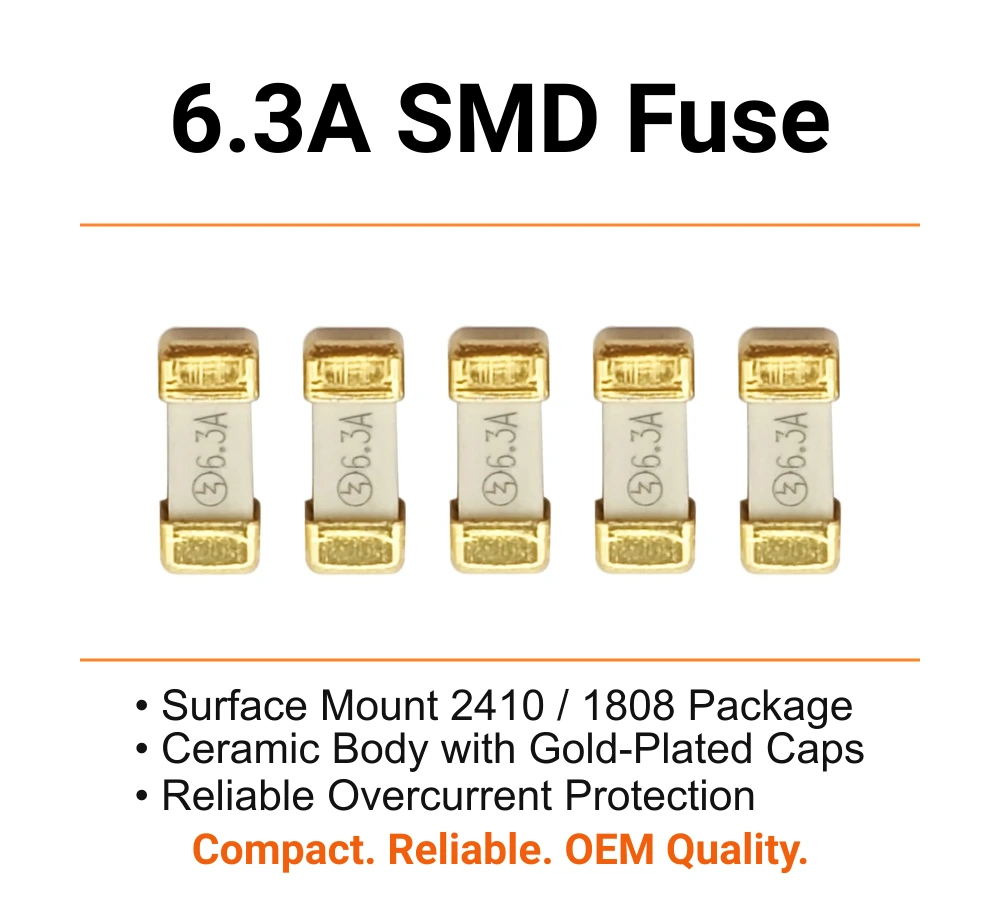

SMD Replacement Fuses, 5-pack
SMD Replacement Fuses

1808-style spares for this board's fused output channels.

Buy Spares
Misc. accessories

We sell a variety of accessories to help with your install and make water-tight connections.

Self-Closing Braided Split Loom
Split Braided Loom

Self-closing braided loom for tidy, protected cable runs. Available in multiple sizes.

Shop Split Loom
Dual Wall Adhesive Lined Heat Shrink
Adhesive Lined Heat Shrink

Dual-wall, adhesive-lined heat shrink for water-tight connections. Available in multiple sizes.

Shop Heat Shrink

Compare the AN-Penta lineup

See all
QuinLED AN-Penta-Mini

QuinLED AN-Penta-Mini

Compact, low-entry option — $48.99

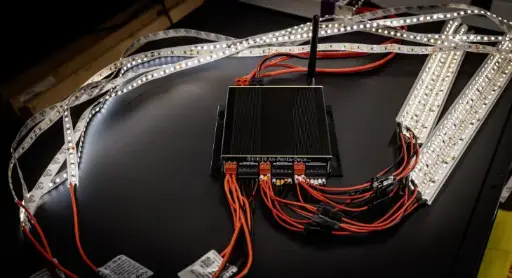

QuinLED AN-Penta-Deca
