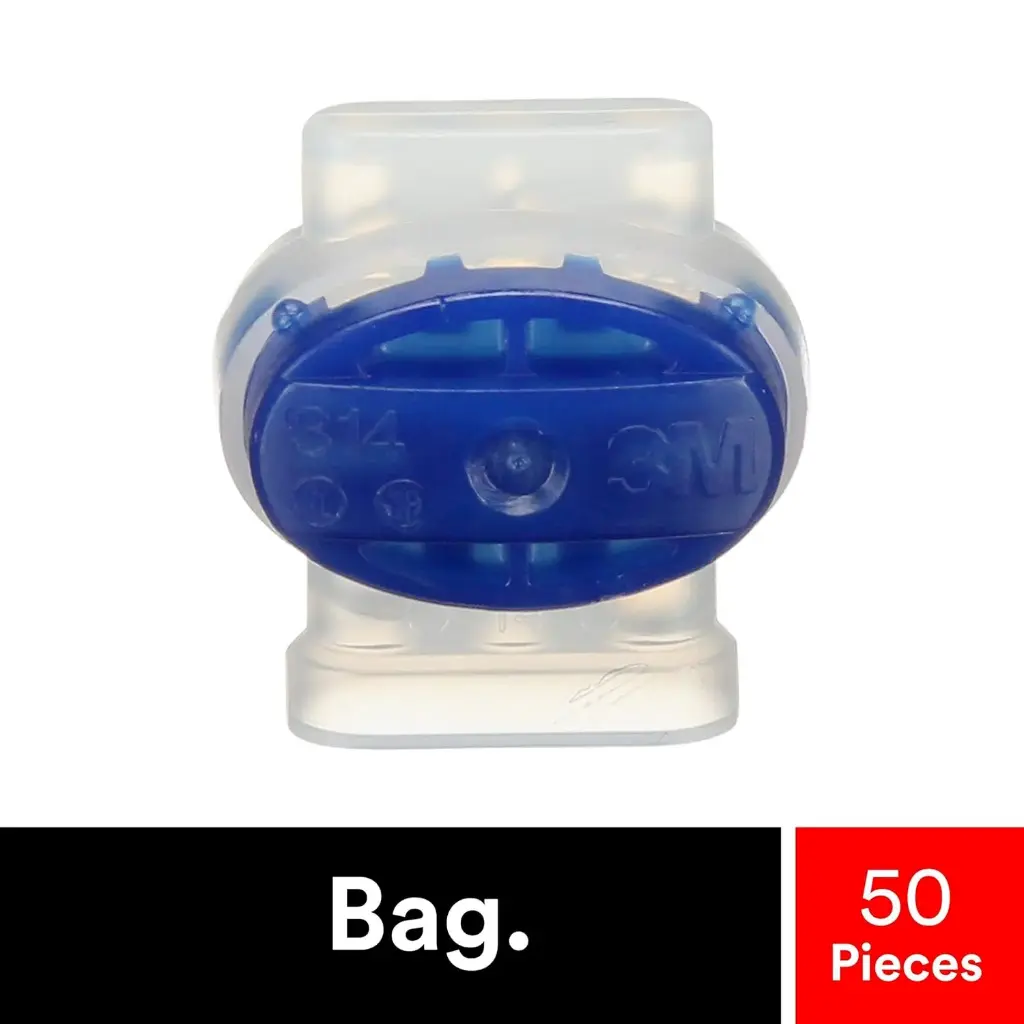

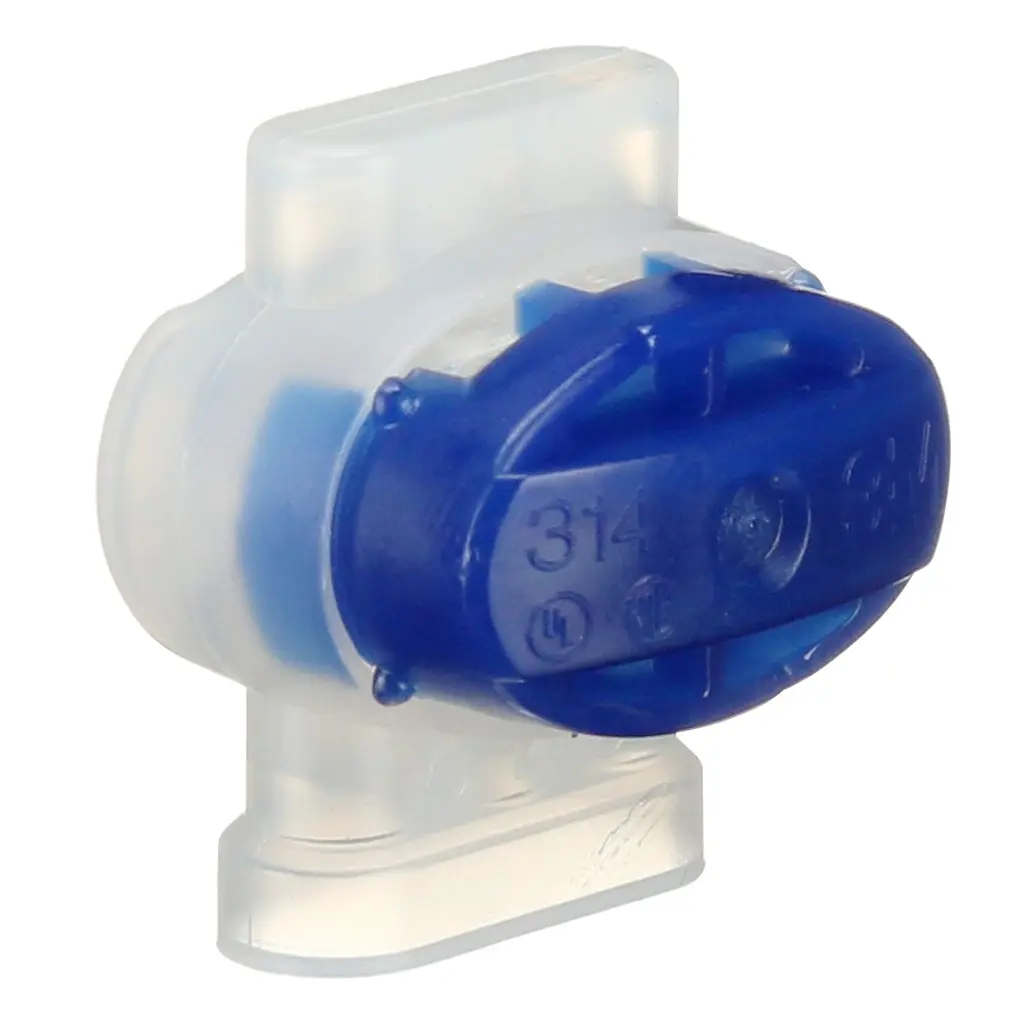

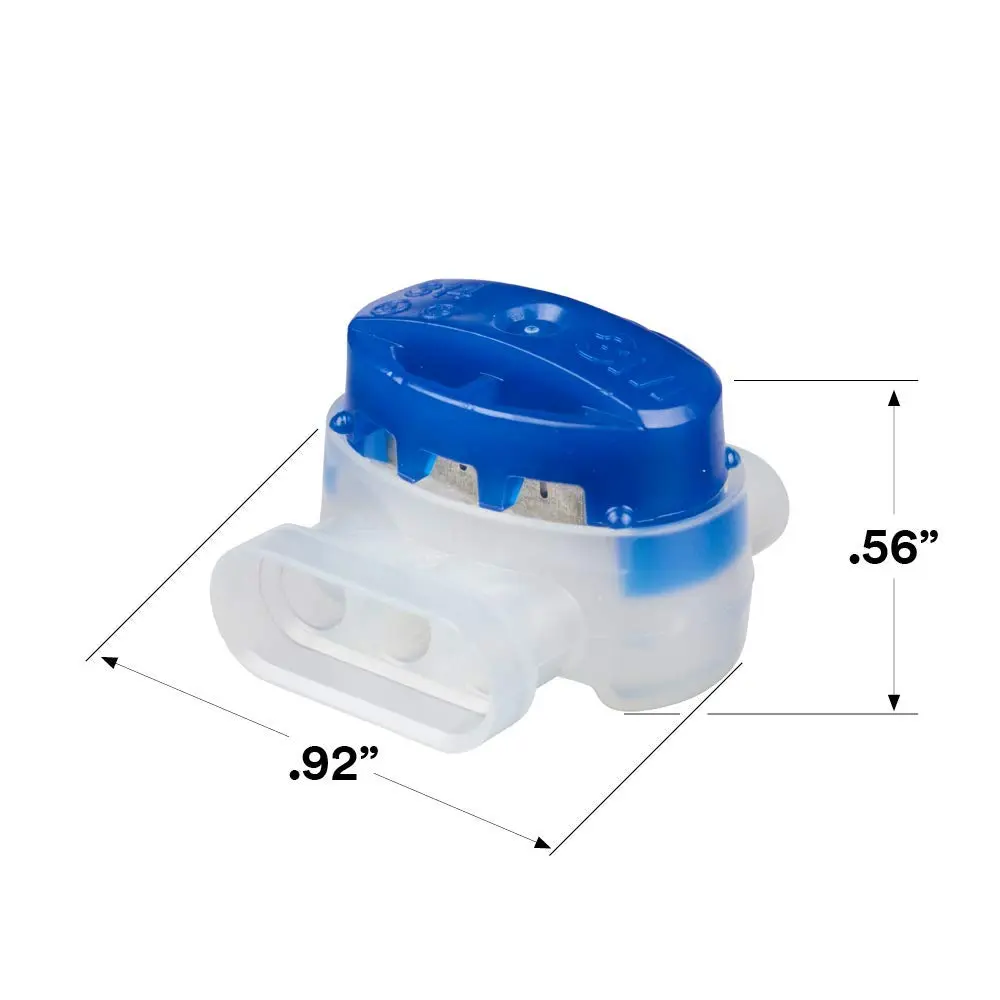

3M Scotchlok Electrical IDC 314-Pouch Connector, Self-Stripping, Blue, 22-14 AWG - Bag of 50
- WHEN TO USE: blue cap and white body nylon-insulated connector is suitable to connect 2 or 3 wires in a pigtail

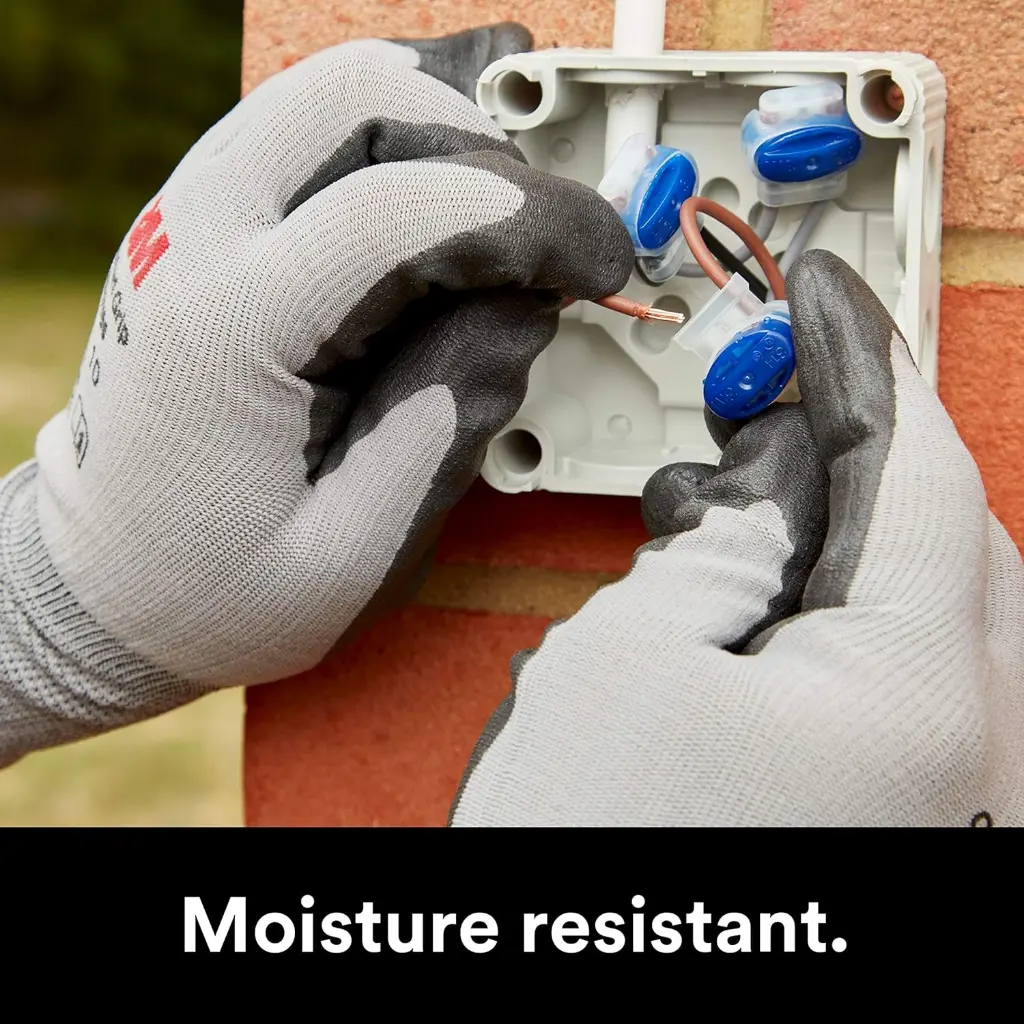

- HELPS PROVIDE a moisture-resistant seal
- DESIGNED TO accommodate 22 to 14 AWG solid/stranded
- CORROSION RESISTANCE: brass element construction for good conductivity and tin plating for corrosion resistance
- TEMPERATURE RANGE: withstands temperatures of 105 degrees °C (221 degrees °F)
Description

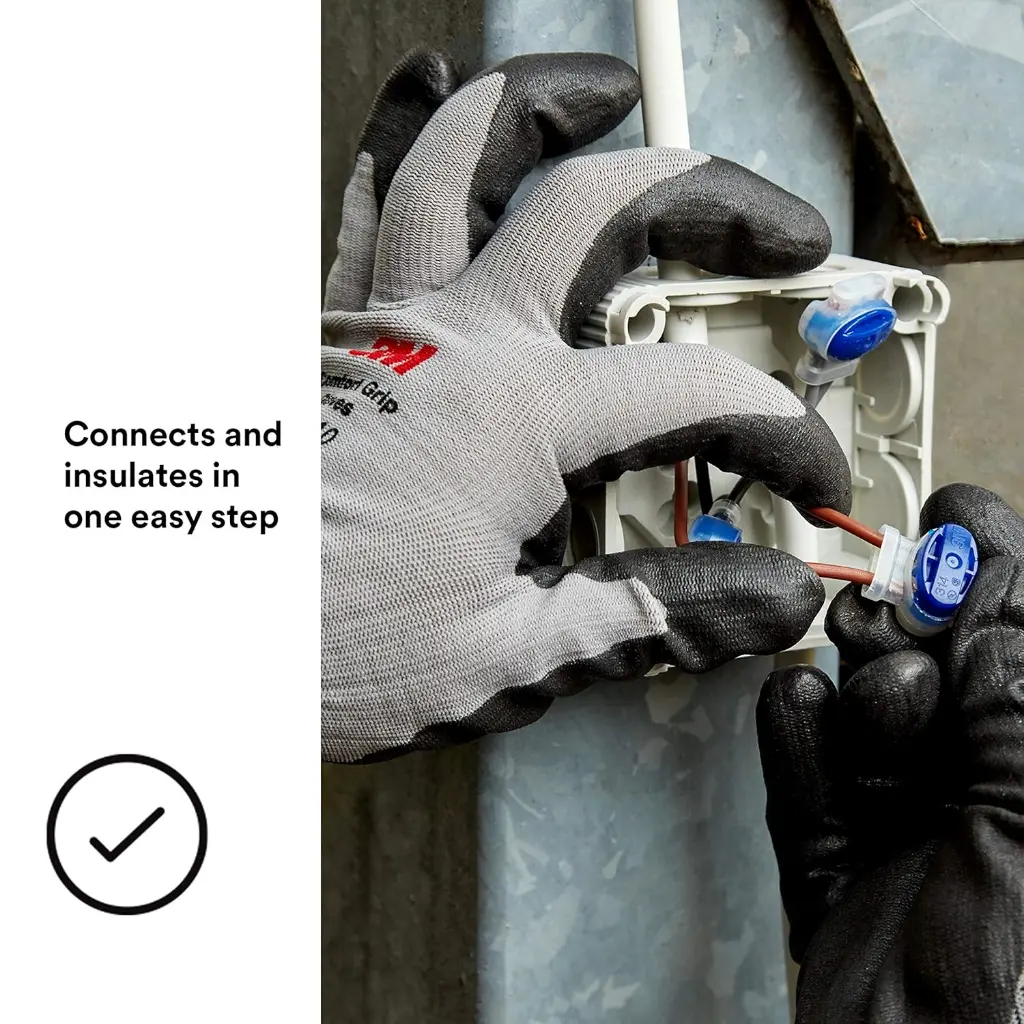

3m scotchlok electrical insulation displacement connector electrically connects a (tap) wire end to a through (run) wire and insulates the connection. It is flame retardant and is used for tape and parallel splicing. This connector features a maximum insulation outside diameter of 0.145 inches (3. 5 mm).
It is rated at 600 volts and features an insulation temperature rating of 194 degrees Fahrenheit (90 degrees Celsius).

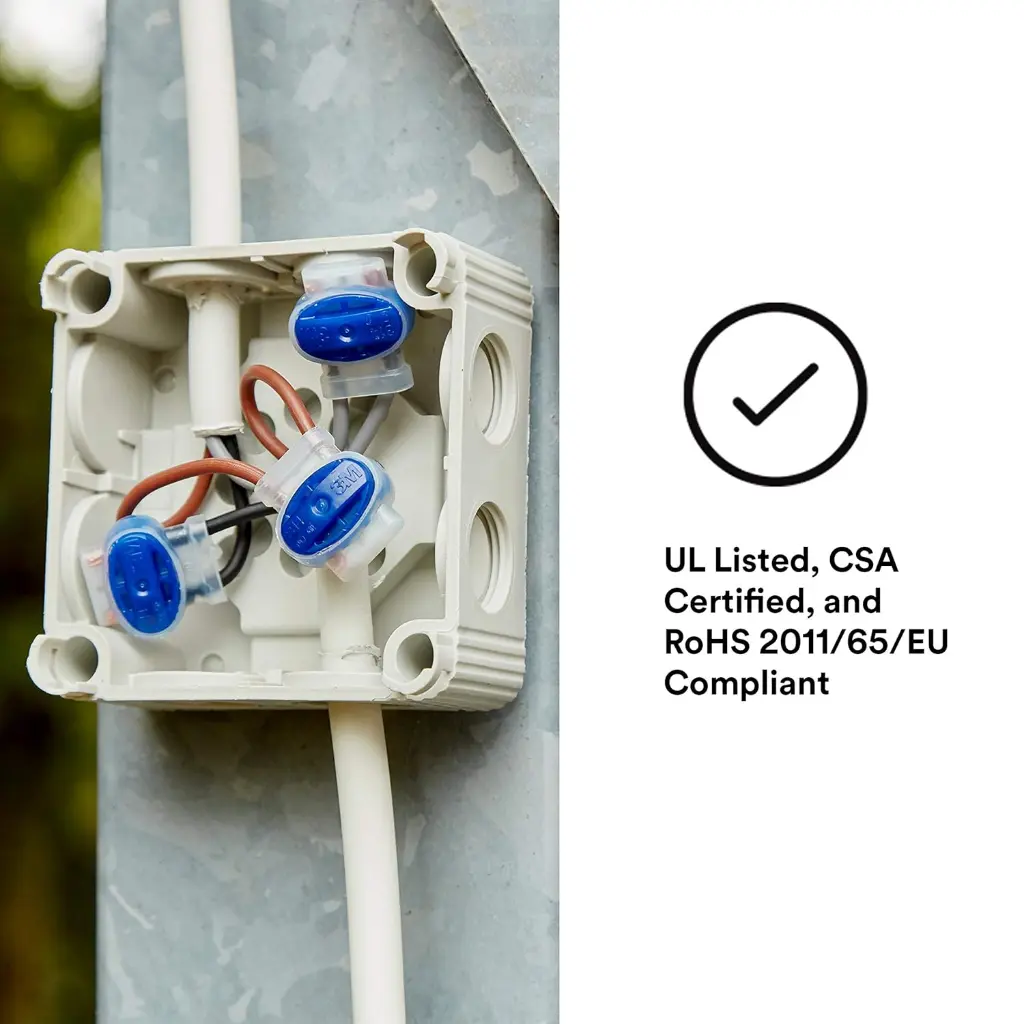

The suggested application tool for the 3m Scotchlok electrical insulation displacement connector, 804, is the 3m Scotchlok crimping tool, e-9bm. Ul listed, csa certified and rohs 2011/65/eu compliant.
Specifications
Brands | Scotchlok™ |
| CSA File Number | LR15503 |
| Conductor Sizes (Imperial) | 14 AWG, 22 AWG |
| Conductor Sizes (Metric) | .34 mm², 2.5 mm² |
| Connection Type | Pigtail |
| Connector Style | Insulation Displacement |
| Flame Retardant | Yes |
| Grease Filling Against Corrosion | Yes |
| Insulation Color | cap blue, body white |
| Insulation Material | Nylon |
| Insulation Outer Diameter (Imperial) | 0.15 in |
| Interrupt Free Shifting | No |
| Material | Flame Retardant Nylon |
| Max. Number of Cores | 3 |
| Maximum Conductor Size (Imperial) | 14 AWG |
| Maximum Conductor Size (Metric) | 2.5 mm² |
| Maximum Operating Temperature (Celsius) | 105 ℃ |
| Maximum Operating Temperature (Fahrenheit) | 221 ℉ |
| Maximum Recommended Voltage Rating | 600 V |
| Minimum Conductor Size (Imperial) | 22 AWG |
| Minimum Conductor Size (Metric) | .34 mm² |
| Moisture Resistant | Yes |
| Package Quantity | 50 , 1000 |
| Product Color | Blue |
| Product Type | Connector |
| Recommended Crimping Tool | E-9BM and/or Mechanics (slip joint) Pliers |
| Run Maximum Insulation Outer Diameter (Imperial) | 0.155 in |
| Run Maximum Insulation Outer Diameter (Metric) | 3.9 mm |
| Tap Maximum Insulation Outer Diameter (Imperial) | 0.155 in |
| Tap Maximum Insulation Outer Diameter (Metric) | 3.9 mm |
| UL File Number | E23438 |
| Voltage Application | Low Voltage |
| Wire Connector Type | IDC Connectors |
